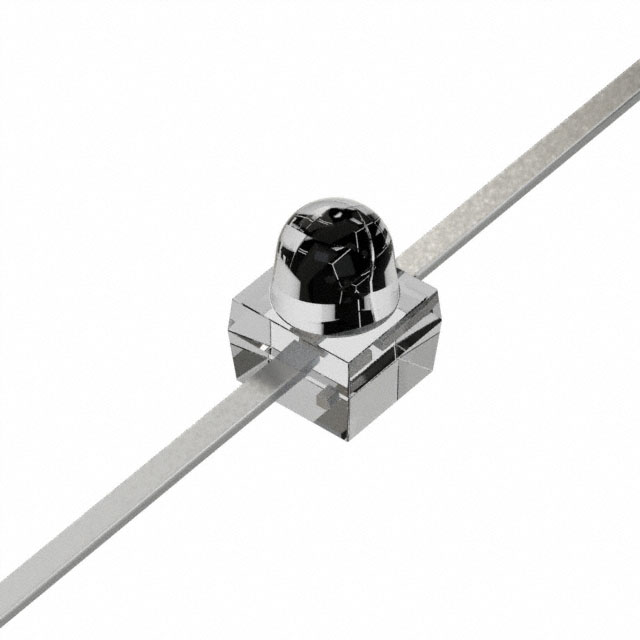

HLMP-Q106-VX011
ActiveBroadcom Limited
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
Optoelectronics
HLMP-Q106-VX011
ActiveBroadcom Limited
LED RED CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-Q106-VX011 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.44 mm |
| Lens Size [diameter] | 1.91 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 2.09 mm |
| Size / Dimension [y] | 2.21 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 2.4 V |
| Wavelength - Dominant | 644 nm |
| Wavelength - Peak | 654 nm |
HLMP-Q106 Series
| Part | Color | Millicandela Rating | Lens Transparency | Viewing Angle | Lens Color | Package / Case | Voltage - Forward (Vf) (Typ) | Height (Max) [Max] | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Peak | Wavelength - Dominant | Mounting Type | Configuration | Lens Size [diameter] | Current - Test | Lens Style | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | Red | 400 mcd | Clear | 15 ° | Colorless | 2-SMD Yoke Bend | 1.9 V | 2.92 mm | Yoke Lead | 2.09 mm | 2.21 mm | 654 nm | 644 nm | Surface Mount | Standard | 1.78 mm | 20 mA | Round with Domed Top | |
 Broadcom Limited | Red | 400 mcd | Clear | 15 ° | Colorless | 2-SMD Gull Wing | 1.9 V | 2.92 mm | Gull Wing | 2.09 mm | 2.21 mm | 654 nm | 644 nm | Surface Mount | Standard | 1.78 mm | 20 mA | Round with Domed Top | |
Broadcom Limited | Red | Clear | 15 ° | 2-SMD Flat Leads | 2.4 V | SMD | 2.09 mm | 2.21 mm | 654 nm | 644 nm | Surface Mount | Standard | 1.91 mm | 20 mA | Round with Domed Top | 2.44 mm | |||
Broadcom Limited | Red | 525 mcd | Clear | 15 ° | Colorless | 2-SMD Gull Wing | 1.9 V | 2.92 mm | Gull Wing | 2.09 mm | 2.21 mm | 654 nm | 644 nm | Surface Mount | Standard | 1.78 mm | 20 mA | Round with Domed Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.57 | |
| Digi-Reel® | 1 | $ 2.57 | ||
| Tape & Reel (TR) | 4500 | $ 0.91 | ||
| 7500 | $ 0.89 | |||
| 10500 | $ 0.88 | |||
Description
General part information
HLMP-Q106 Series
Red 644nm LED Indication - Discrete 2.4V 2-SMD, Flat Leads
