Connectors, Interconnects

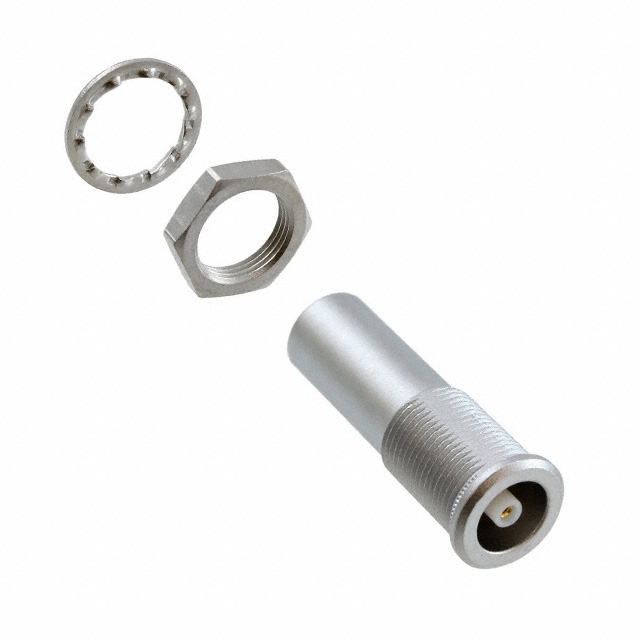

RAD.00.250.CTM
ActiveLEMO
CONN ADAPT JACK-JACK NIM-CAMAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RAD.00.250.CTM |
|---|---|
| Adapter Series | NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 |
| Adapter Type | Jack to Jack |
| Body Finish | Chrome |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | NIM-CAMAC CD/N 549 Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.86 | |
| 10 | $ 25.38 | |||
| 25 | $ 23.00 | |||
| 50 | $ 21.39 | |||
| 100 | $ 19.94 | |||
| 250 | $ 18.22 | |||
| 500 | $ 17.07 | |||
Description
General part information
RAD.00.250 Series
Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
