Integrated Circuits (ICs)

NANO103LD3AE

Active

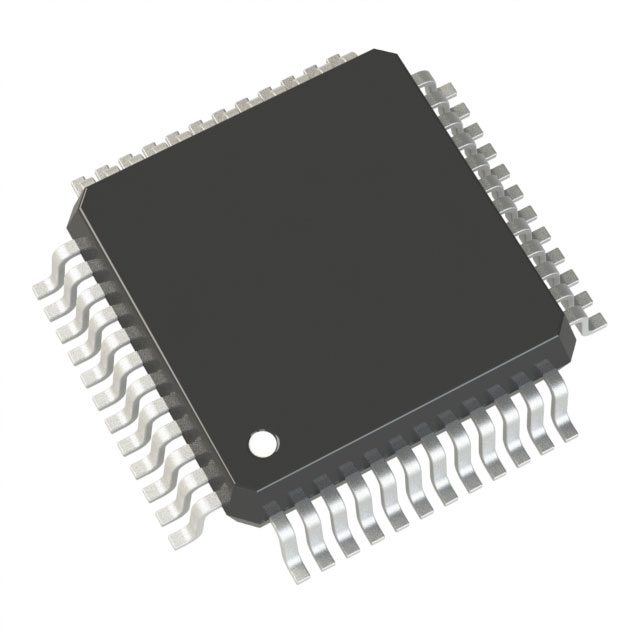

IC MCU 32BIT 64KB FLASH 48LQFP

Search across all available documentation for this part.

Integrated Circuits (ICs)

Active

IC MCU 32BIT 64KB FLASH 48LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	NANO103LD3AE

Connectivity	UART/USART, I2C, SPI, LINbus, SmartCard, IrDA
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit Single-Core, 32-Bit
Data Converters	A/D 8x12b
Mounting Type	Surface Mount
Number of I/O	39
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-LQFP
Peripherals	Brown-out Detect/Reset, WDT, DMA, PWM, POR
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	36 MHz
Supplier Device Package	48-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Core Size	Oscillator Type	Connectivity	Core Processor	Peripherals	Operating Temperature [Min]	Operating Temperature [Max]	RAM Size	Mounting Type	Supplier Device Package	Data Converters	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Program Memory Type	Number of I/O	Speed	Program Memory Size
Nuvoton Technology Corporation NANO103LD3AE	32-Bit 32-Bit Single-Core	Internal	I2C IrDA LINbus SmartCard SPI UART/USART	ARM® Cortex®-M0	Brown-out Detect/Reset DMA POR PWM WDT	-40 °C	105 °C	16 K	Surface Mount	48-LQFP (7x7)	A/D 8x12b	3.6 V	1.8 V	48-LQFP	FLASH	39	36 MHz	64 KB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M0 NuMicro™ Nano103 Microcontroller IC 32-Bit Single-Core 36MHz 64KB (64K x 8) FLASH 48-LQFP (7x7)
