Technical Specifications
Parameters and characteristics for this part
| Specification | 7937-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.25 Ám |
| Contact Finish Thickness | 10 Áin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 3.94 mm |
| Flange Diameter [diameter] | 0.155 in |
| Insulation | Non-Insulated |
| Length - Overall [x] | 5.23 mm |
| Length - Overall [x] | 0.206 in |
| Mounting Type | Surface Mount |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
| 3000 | $ 0.21 | |||
| N/A | 11356 | $ 0.45 | ||
Description
General part information
7937-0 Series

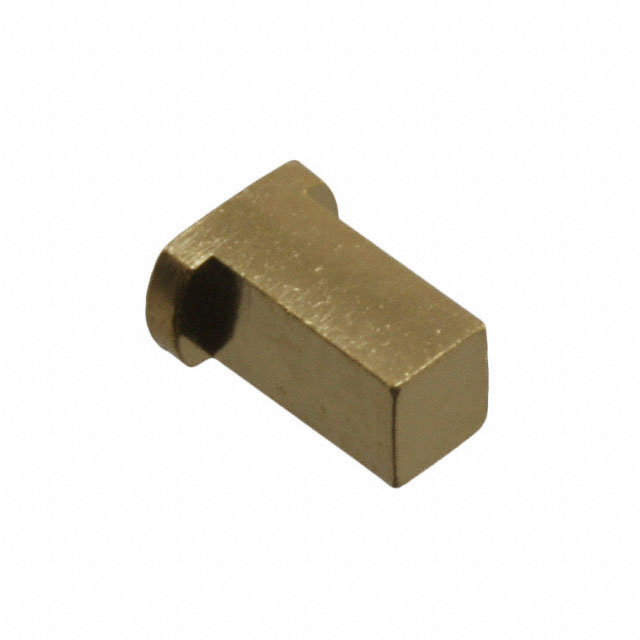

PC Pin Terminal Connector Surface Mount Gold
