Technical Specifications
Parameters and characteristics for this part
| Specification | 8199 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 30 A |
| Mounting Type | Through Hole |
| Number of Pins | 6 pins |
| Screw Material | Brass |
| Screw Size | 6-32 |
| Terminal Type | Power Tap, Screw Terminal |
| Termination | Snap-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.02 | 1m+ |
| 25 | $ 0.69 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| 2500 | $ 0.41 | |||
| N/A | 22200 | $ 0.83 | 1m+ | |
| 135190 | $ 0.83 | |||
CAD
3D models and CAD resources for this part
Description
General part information

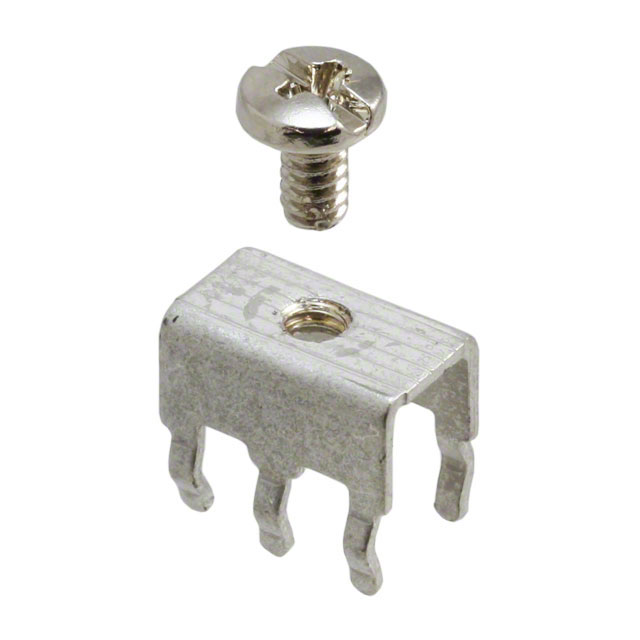

8199 Series
6 Pin Screw Terminal, Power Tap 6-32 Through Hole
Documents
Technical documentation and resources
