Technical Specifications
Parameters and characteristics for this part
| Specification | PFN.2M.310.XLMT |
|---|---|
| Applications | Aviation, Military, Aerospace, Automotive |
| Cable Opening | 13 mm |
| Cable Opening | 0.512 in |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Material | Bronze |
| Current Rating (Amps) | 8 A |
| Fastening Type | Threaded |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Flange |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 310 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 122.58 | |
| 10 | $ 112.48 | |||
| 25 | $ 108.16 | |||
| 50 | $ 104.55 | |||
| 100 | $ 98.78 | |||
Description
General part information
PFN.2M Series

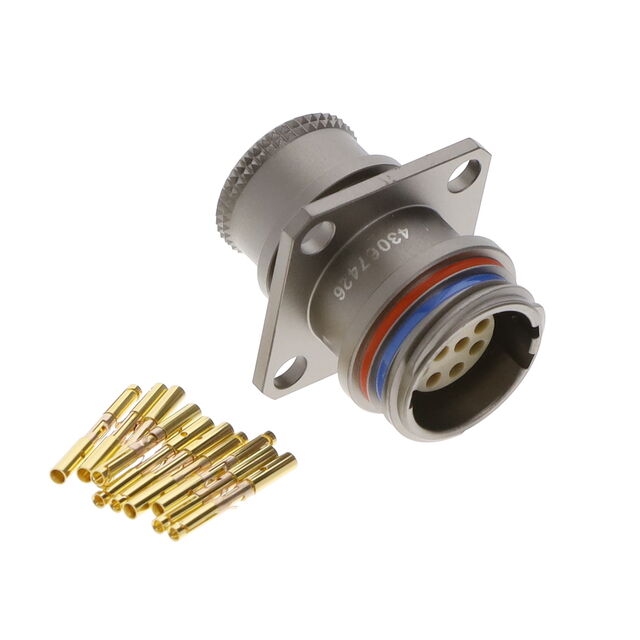

10 Position Circular Connector Receptacle, Female Sockets Crimp
