Circuit Protection

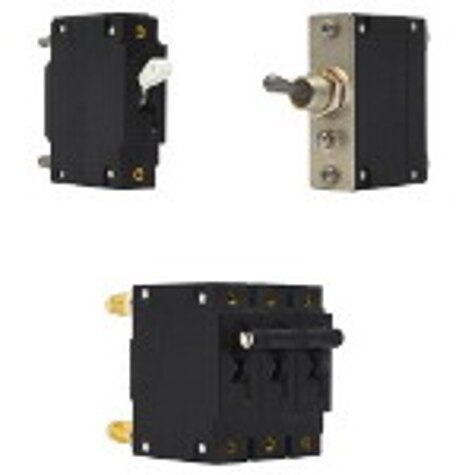

CA3-B0-24-630-12C-C

Active

Carling Technologies

CIRCUIT BREAKERS CIRCUIT BREAKER HYMAG

Deep-Dive with AI

Search across all available documentation for this part.

Circuit Protection

CA3-B0-24-630-12C-C

Active

Carling Technologies

CIRCUIT BREAKERS CIRCUIT BREAKER HYMAG

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CA3-B0-24-630-12C-C

Actuator Type	Lever
Approval Agency	CSA, CCC, UL
Breaker Type	Magnetic (Hydraulic Delay)
Current Rating (Amps)	30 A
Illumination	None
Number of Poles	3
Voltage Rating - AC	480 V
Voltage Rating - DC	150 V

C Series

Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange

Part	Approval Agency	Breaker Type	Illumination	Current Rating (Amps)	Voltage Rating - AC	Number of Poles	Voltage Rating - DC	Actuator Type
Carling Technologies CA1-B0-16-650-121-MG	CCC CSA UL489	Magnetic (Hydraulic Delay)	None	50 A	480 V	1	80 V	Lever
Carling Technologies CJ3-B0-24-650-335-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	50 A	480 V	3	125 VDC	Rocker
Carling Technologies CA1-B0-16-650-322-D	CCC CSA UL VDE	Magnetic (Hydraulic Delay)	None	50 A	480 V	1	80 V	Lever
Carling Technologies CA3-B0-24-620-721-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	20 A	480 V	3	150 V	Lever
Carling Technologies CA2-B0-34-650-121-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	50 A	480 V	2	125 VDC	Lever
Carling Technologies CB2-B0-24-430-442-DJ	CCC CSA TUV UL489	Magnetic (Hydraulic Delay)	None	3 A	240 V	2	150 V	Lever
Carling Technologies CA3-B0-24-630-12C-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	30 A	480 V	3	150 V	Lever
Carling Technologies CM1-B0-12-660-301-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	60 A	480 V	1	125 VDC	Toggle
Carling Technologies CA1-B0-12-610-121-E	CCC CSA TUV UL	Magnetic (Hydraulic Delay)	None	10 A	480 V	1	80 V	Lever
Carling Technologies CB3-B0-22-650-361-C	CCC CSA UL	Magnetic (Hydraulic Delay)	None	50 A	480 V	3	150 V	Lever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 236.37
Sager	N/A	1	$ 136.50
		3	$ 125.86
		4	$ 188.98
		6	$ 112.69
		13	$ 102.02
		26	$ 98.89
		27	$ 95.85

Description

General part information

C Series

Documents

Technical documentation and resources

No documents available
