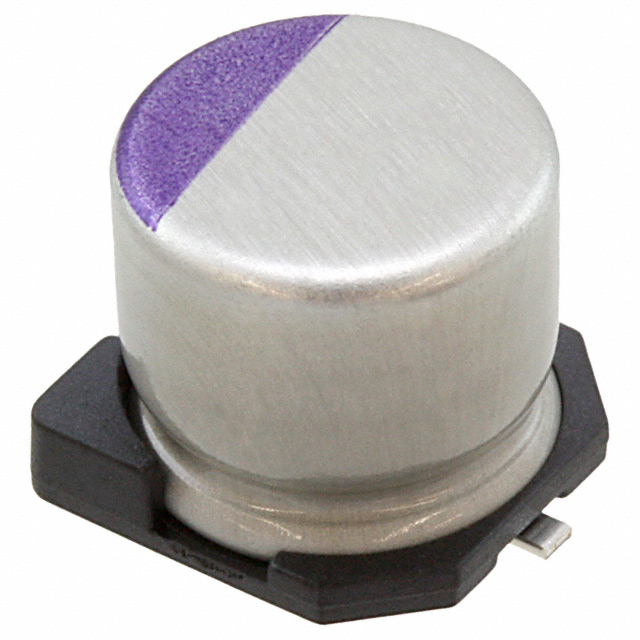

Specification	6SVP120MV

Applications	General Purpose
Capacitance	120 µF
ESR (Equivalent Series Resistance)	17 mOhm
Height - Seated (Max)	6 mm
Height - Seated (Max) [Max]	0.236 "
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.78 A
Ripple Current @ Low Frequency	139 mA
Size / Dimension [diameter]	0.248 "
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	6.3 VDC

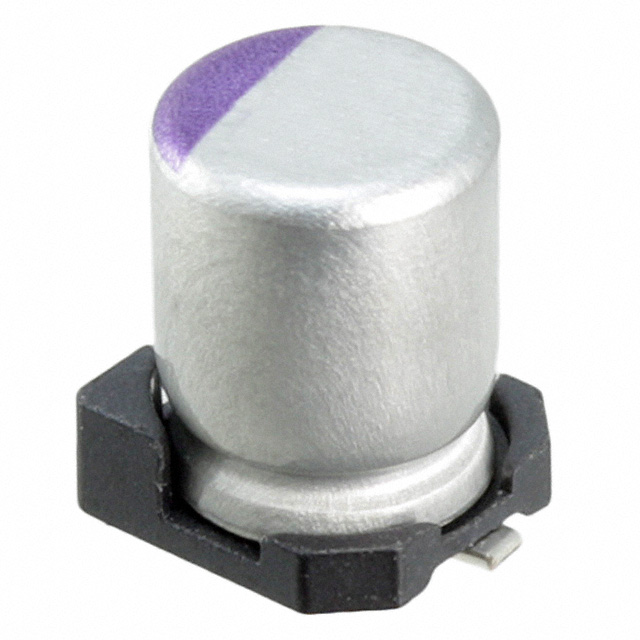

6SVP Series

Part	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Capacitance	Tolerance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Mounting Type	Height - Seated (Max)

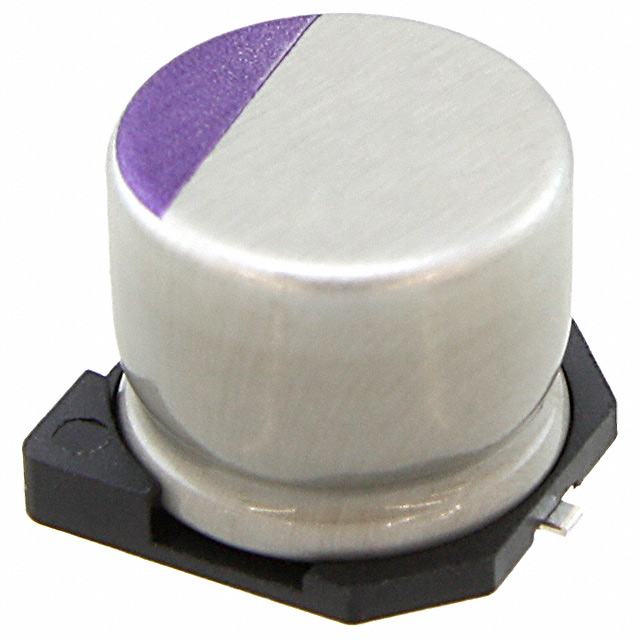

Panasonic Electronic Components 6SVP220MX	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	35 mOhms	0.315 in	8 mm	0.276 in	7 mm	General Purpose	-55 C	105 ░C	2000 Hrs	220 µF	20 %	128 mA	2.56 A	6.3 VDC	Radial Can - SMD	Surface Mount
Panasonic Electronic Components 6SVP100M	Polymer	6.6 mm	6.6 mm	0.26 in	0.26 in	40 mOhm	0.248 "	6.3 mm	0.236 "		General Purpose	-55 C	105 ░C	2000 Hrs	100 µF	20 %	90.5 mA	1.81 A	6.3 VDC	Radial Can - SMD	Surface Mount	6 mm

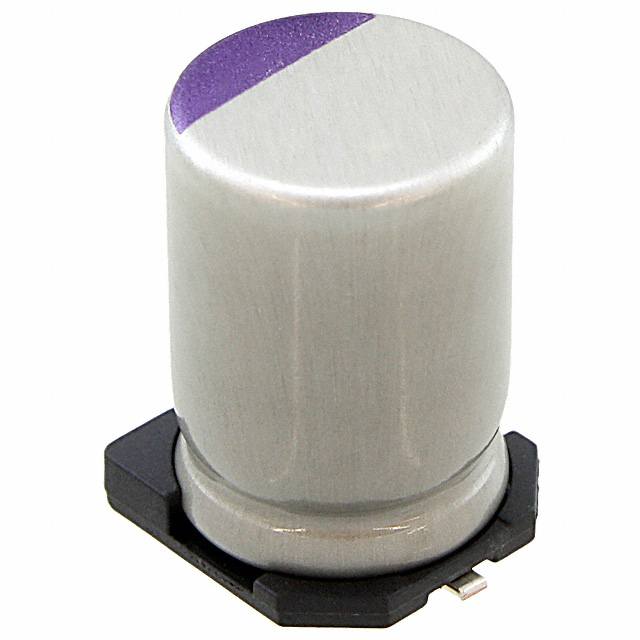

Panasonic Electronic Components 6SVP470M	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	15 mOhm	0.315 in	8 mm	0.472 in		General Purpose	-55 C	105 ░C	2000 Hrs	470 µF	20 %	210.5 mA	4.21 A	6.3 VDC	Radial Can - SMD	Surface Mount	12 mm
Panasonic Electronic Components 6SVP220M	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	25 mOhm	0.315 in	8 mm	0.276 in	7 mm	General Purpose	-55 C	105 ░C	2000 Hrs	220 µF	20 %	185 mA	3.7 A	6.3 VDC	Radial Can - SMD	Surface Mount
Panasonic Electronic Components 6SVP120MV	Polymer	6.6 mm	6.6 mm	0.26 in	0.26 in	17 mOhm	0.248 "	6.3 mm	0.236 "		General Purpose	-55 C	105 ░C	2000 Hrs	120 µF	20 %	139 mA	2.78 A	6.3 VDC	Radial Can - SMD	Surface Mount	6 mm

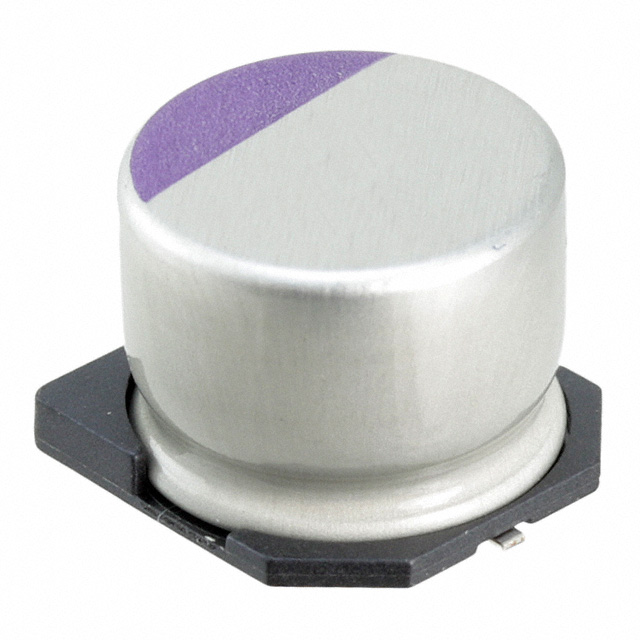

Panasonic Electronic Components 6SVP820M	Polymer	10.3 mm	10.3 mm	0.406 "	0.406 in	12 mOhms	0.394 in	10 mm	0.5 in	12.7 mm	General Purpose	-55 C	105 ░C	2000 Hrs	820 µF	20 %	272 mA	5.44 A	6.3 VDC	Radial Can - SMD	Surface Mount
Panasonic Electronic Components 6SVP47M	Polymer	0.209 in 5.3 mm	0.209 in 5.3 mm			70 mOhms	0.197 in	5 mm	0.236 "		General Purpose	-55 C	105 ░C	2000 Hrs	47 µF	20 %		1.1 A	6.3 VDC	Radial Can - SMD	Surface Mount	6 mm
Panasonic Electronic Components 6SVP82M	Polymer	6.6 mm	6.6 mm	0.26 in	0.26 in	45 mOhm	0.248 "	6.3 mm	0.236 "		General Purpose	-55 C	105 ░C	2000 Hrs	0.082 mF	20 %	85 mA	1.7 A	6.3 VDC	Radial Can - SMD	Surface Mount	6 mm
Panasonic Electronic Components 6SVP470MX	Polymer	10.3 mm	10.3 mm	0.406 "	0.406 in	25 mOhm	0.394 in	10 mm	0.315 in	8 mm	General Purpose	-55 C	105 ░C	2000 Hrs	470 µF	20 %	185 mA	3.7 A	6.3 VDC	Radial Can - SMD	Surface Mount
Panasonic Electronic Components 6SVP22M	Polymer	4.3 mm	4.3 mm	0.169 in	0.169 "	200 mOhm	0.157 in	4 mm	0.217 "	5.5 mm	General Purpose	-55 C	105 ░C	2000 Hrs	22 µF	20 %	37 mA	740 mA	6.3 VDC	Radial Can - SMD	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.28
		10	$ 0.96
		50	$ 0.88
		100	$ 0.72
		500	$ 0.57
	Digi-Reel®	1	$ 1.28
		10	$ 0.96
		50	$ 0.88
		100	$ 0.72
		500	$ 0.57
	N/A	0	$ 1.54
	Tape & Reel (TR)	1000	$ 0.51
		2000	$ 0.47
		5000	$ 0.46
		10000	$ 0.44
Newark	Each (Supplied on Full Reel)	1000	$ 0.57
		2000	$ 0.52
		4000	$ 0.46
		6000	$ 0.45
		10000	$ 0.44

Description

General part information

6SVP Series

120 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 17mOhm 2000 Hrs @ 105°C
