RA49B14B

Active

Switchcraft Inc.

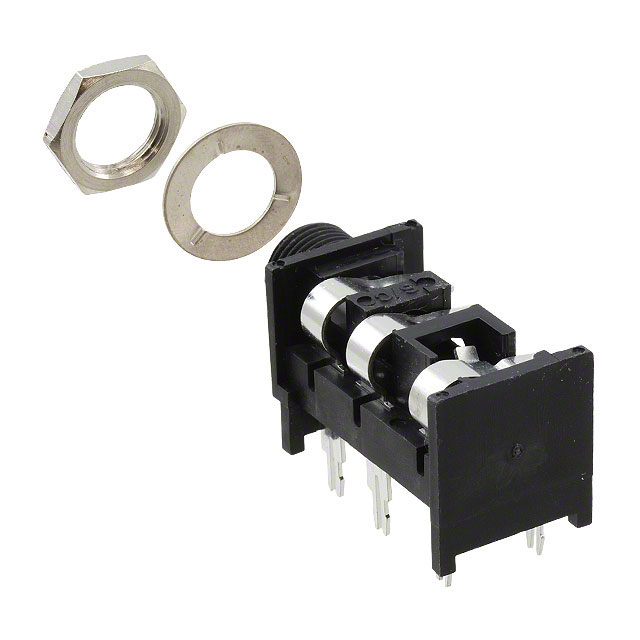

CONN JACK STEREO 6.35MM R/A

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RA49B14B

Actual Diameter [diameter]	6.43 mm
Actual Diameter [diameter]	0.253 "
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Features	Board Guide
Gender	Female
Housing Material	Thermoplastic, Polyester
Includes	Connector, Washer, Nut
Internal Switch(s)	Two Switches
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	5
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Thread Size	3/8"-32

Part	Features	Body Color	Signal Lines	Connector Type	Number of Positions/Contacts	Contact Material - Plating [custom]	Contact Material	Housing Material	Shielding	Thread Size	Includes	Internal Switch(s)	Mounting Type	Gender	Termination	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Switchcraft Inc. RA49B12A	Board Guide	Black	Mono	Phone Jack	2 Conductors 3 Conductors	Silver	Copper Alloy	Polyester Thermoplastic	Unshielded	3/8"-32	Connector Nut Washer	Single Switch	Through Hole Right Angle	Female	Solder	6.43 mm	0.253 "
Switchcraft Inc. RA49B11	Board Guide	Black	Mono	Phone Jack		Silver	Copper Alloy	Polyester Thermoplastic	Unshielded	3/8"-32	Connector Nut Washer		Through Hole Right Angle	Female	Solder	6.43 mm	0.253 "	2	2
Switchcraft Inc. RA49B14B	Board Guide	Black	Stereo	Phone Jack		Silver	Copper Alloy	Polyester Thermoplastic	Unshielded	3/8"-32	Connector Nut Washer	Two Switches	Through Hole Right Angle	Female	Solder	6.43 mm	0.253 "	3	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
