Integrated Circuits (ICs)

5PB1104CMGI

Active

Renesas Electronics Corporation

1.8V TO 3.3V 1:4 LVCMOS HIGH-PERFORMANCE CLOCK BUFFER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

Integrated Circuits (ICs)

5PB1104CMGI

Active

Renesas Electronics Corporation

1.8V TO 3.3V 1:4 LVCMOS HIGH-PERFORMANCE CLOCK BUFFER

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5PB1104CMGI

Differential - Input:Output [custom]	False
Differential - Input:Output [custom]	False
Frequency - Max [Max]	200 MHz
Input	LVCMOS
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 C
Output	LVCMOS
Package / Case	8-UFDFN
Ratio - Input:Output	1:4
Supplier Device Package	8-VFQFN (2x2), 8-DFN (2x2)
Type	Fanout Buffer (Distribution)
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	1.71 V

5PB1104 Series

1.8V to 3.3V 1:4 LVCMOS High-Performance Clock Buffer

Part	Supplier Device Package	Ratio - Input:Output	Package / Case	Number of Circuits	Input	Frequency - Max [Max]	Output	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Package / Case
Renesas Electronics Corporation 5PB1104CMG18	8-DFN (2x2) 8-VFQFN (2x2)	1:4	8-UFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	125 °C	-40 °C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount
Renesas Electronics Corporation 5PB1104PGGI	8-TSSOP	1:4	8-TSSOP	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	85 °C	-40 C	1.71 V	3.465 V	Surface Mount	0.173 in	4.4 mm
Renesas Electronics Corporation 5PB1104CMG1	8-DFN (2x2) 8-VFQFN (2x2)	1:4	8-UFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	125 °C	-40 °C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount
Renesas Electronics Corporation 5PB1104CMT18	8-DFN (2x2)	1:4	8-WFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	125 °C	-40 °C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount Wettable Flank
Renesas Electronics Corporation 5PB1104PGGI8	8-TSSOP	1:4	8-TSSOP	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	85 C	-40 ¯C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount	0.173 in	4.4 mm
Renesas Electronics Corporation 5PB1104CMGI	8-DFN (2x2) 8-VFQFN (2x2)	1:4	8-UFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	85 °C	-40 C	1.71 V	3.465 V	Surface Mount
Renesas Electronics Corporation 5PB1104CMGI8	8-DFN (2x2)	1:4	8-UFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	85 °C	-40 C	1.71 V	3.465 V	Surface Mount
Renesas Electronics Corporation 5PB1104CMGK8	8-DFN (2x2)	1:4	8-UFDFN	1	LVCMOS	200 MHz	LVCMOS	Fanout Buffer (Distribution)	105 °C	-40 °C	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	3372	$ 2.30
	Strip	1	$ 2.56
		10	$ 2.30
		25	$ 2.17
		100	$ 1.85
		250	$ 1.74
		500	$ 1.52
		1000	$ 1.26
		2500	$ 1.17
		5000	$ 1.13
Newark	Each (Supplied on Cut Tape)	1	$ 2.16
		10	$ 1.56
		25	$ 1.49
		50	$ 1.42
		100	$ 1.37
		300	$ 1.30
		500	$ 1.26
		1000	$ 1.23

Description

General part information

5PB1104 Series

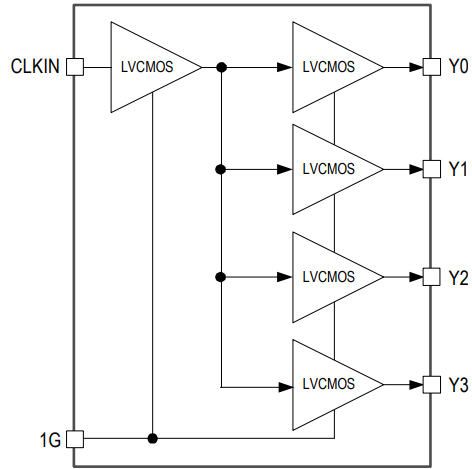

The 5PB1104 is a high-performance 1:4 LVCMOS clock buffer that offers a best-in-class additive phase jitter of 50fs RMS. This clock buffer also supports an Output Enable function. It is available in 8-pin DFN and TSSOP packages and can operate from a 1.8V to 3.3V supply.
