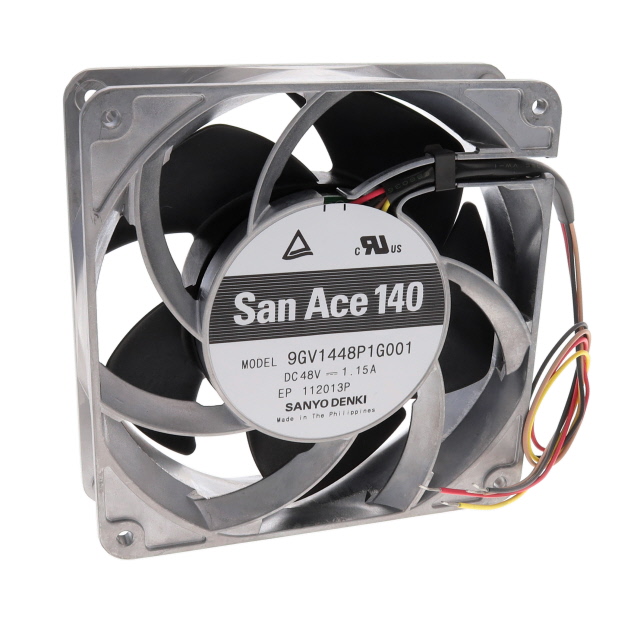

9GV1448P1G001

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 48VDC WIRE

Search across all available documentation for this part.

Fans, Blowers, Thermal Management

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GV1448P1G001

Air Flow	8.68 m³/min
Air Flow	310 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	70 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	55.2 W
RPM	7600 RPM
Size / Dimension [x]	140 mm
Size / Dimension [z]	140 mm
Static Pressure	640.1 Pa
Static Pressure	2.57 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	635 g
Weight [custom]	1.4 lbs
Width [y]	38 mm

Part	Material - Blade	Width [y]	Material - Frame	RPM	Features	Bearing Type	Fan Type	Voltage - Rated [custom]	Lifetime @ Temp.	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight	Approval Agency	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Termination	Noise
Sanyo Denki America Inc. 9GV1448P1G001	Plastic	38 mm	Aluminum	7600 RPM	PWM Control Speed Sensor (Tach)	Ball	Tubeaxial	48 VDC	40000 Hrs	640.1 Pa	2.57 in H2O	-20 °C	70 °C	-20 C	70 °C	1.4 lbs	635 g	CSA TUV UL	55.2 W	60 V	36 VDC	140 mm	140 mm	8.68 m³/min	310 CFM	4 Wire Leads	70 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 140mm L x 140mm H Ball 310.0 CFM (8.68mł/min) 4 Wire Leads
