Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4222842 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 12 Áin |
| Contact Finish Thickness - Mating | 0.3 Ám |
| Contact Finish Thickness - Post | 3.5 Ám |
| Contact Finish Thickness - Post | 137.8 Áin |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Features | Mating Flange, Polarizing Key, Jackscrews, Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.8 mm, 8.05 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch - Mating | 0.079 " |
| Pitch - Mating | 2 mm |
| Row Spacing - Mating | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Style | Cable, Board to Board |
| Termination | Solder |
| Voltage Rating | 120 VDC |
| Part | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Termination | Current Rating (Amps) | Insulation Color | Style | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Finish - Post | Number of Positions Loaded | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Mated Stacking Heights | Material Flammability Rating | Voltage Rating | Number of Positions | Features | Connector Type | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Circular | -55 C | 125 °C | Automotive General Purpose Military | Polyphenylene Sulfide (PPS) Glass Filled | 12 Áin | 0.3 Ám | 3.5 Ám | 137.8 Áin | Beryllium Copper | Solder | 3 A | Black | Board to Board Cable | Gold | 5.6 mm | 0.22 in | Tin | All | 2 | 0.079 " | 2 mm | 2 mm | 0.079 in | 7.8 mm 8.05 mm | UL94 V-0 | 120 VDC | 28 | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | Female Socket | Surface Mount |
Harwin Inc. | Circular | -55 C | 125 °C | Automotive General Purpose Military | Polyphenylene Sulfide (PPS) Glass Filled | 12 Áin | 0.3 Ám | 0.25 çm | 10 Áin | Beryllium Copper | Solder | Black | Board to Board Cable | Gold | 5.6 mm | 0.22 in | Gold | All | 2 | 0.079 " | 2 mm | 2 mm | 0.079 in | 7.8 mm 8.05 mm | UL94 V-0 | 120 VDC | 20 | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | Female Socket | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.00 | |
Description
General part information
M80-422 Series

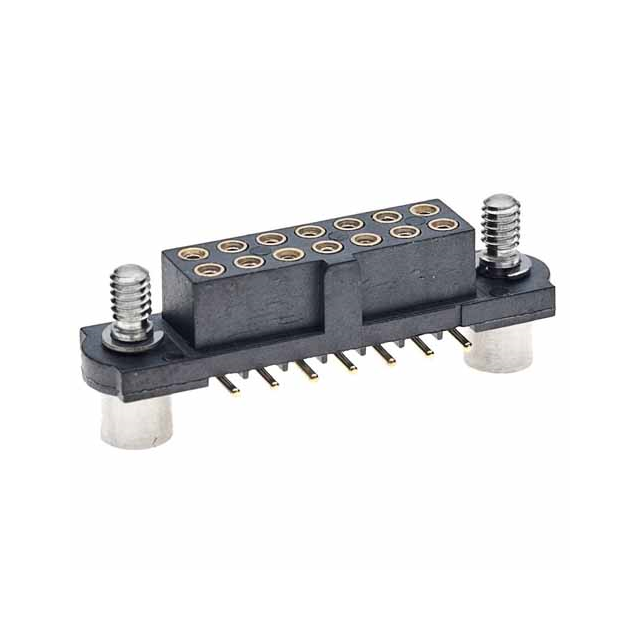

28 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
