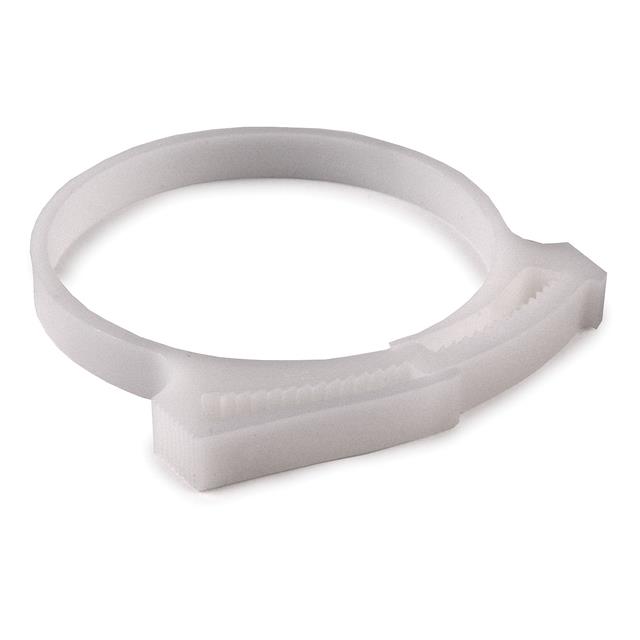

Specification	SNP5010C2

Color	White
Length [Max]	2.341 in
Length [Max]	59.46 mm
Length [Min]	1.411 in
Length [Min]	35.84 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 "
Opening Size [Max]	2.277 in
Opening Size [Max]	57.84 mm
Opening Size [Min]	50.77 mm
Opening Size [Min]	1.999 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	7.4 mm
Width [x]	0.291 in

SNP5010 Series

Part	Material	Type	Material Thickness	Material Thickness	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Color	Type Attributes	Material Flammability Rating	Width	Width [x]
HELLERMANNTYTON SNP5010C2	Polyacetal (POM)	Clamp Hose	1.7 mm	0.067 "	2.341 in	59.46 mm	1.411 in	35.84 mm	2.277 in	50.77 mm	57.84 mm	1.999 in	White	Push-Fit	UL94 HB	7.4 mm	0.291 in
