Integrated Circuits (ICs)
MP9457GF-Z
ActiveMonolithic Power Systems Inc.
SWITCHING VOLTAGE REGULATORS 3A PROGRAMMABLE SYNC STEP DOWN CONV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMP9457GF-Z | Datasheet
Integrated Circuits (ICs)
MP9457GF-Z
ActiveMonolithic Power Systems Inc.
SWITCHING VOLTAGE REGULATORS 3A PROGRAMMABLE SYNC STEP DOWN CONV
Deep-Dive with AI
DocumentsMP9457GF-Z | Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP9457GF-Z |
|---|---|
| Current - Output | 3 A |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |

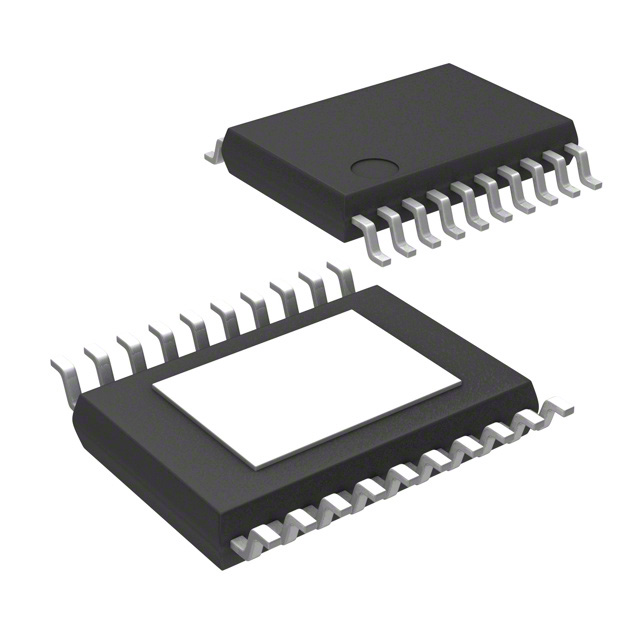

| Package / Case | Exposed Pad, 20-TSSOP |
| Package / Case | 0.173 ", 4.4 mm |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.62 | |||
| 25 | $ 2.47 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.62 | |||
| 25 | $ 2.47 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| N/A | 0 | $ 2.58 | ||
| Tape & Reel (TR) | 2500 | $ 1.34 | ||
| 5000 | $ 1.29 | |||
| Mouser | N/A | 1 | $ 3.83 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.10 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.50 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.28 | |||
| 2500 | $ 1.22 | |||
Description
General part information
MP9457 Series
Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
