Technical Specifications
Parameters and characteristics for this part
| Specification | HM2PN2PDE129N9LLF |
|---|---|
| Connector Style | B 25 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 Áin |
| Contact Finish Thickness | 0.76 Ám |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 125, 25 |
| Number of Positions Loaded | All |
| Number of Rows | 1, 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 3.10 | |
| Tray | 1152 | $ 2.88 | ||
Description
General part information
HM2PN2 Series

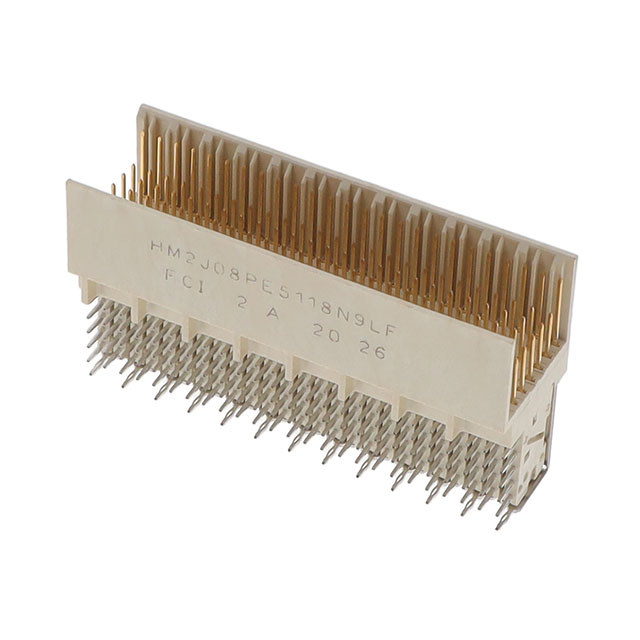

150 (125 + 25 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
