PANASONIC 16SVPC39MV
Capacitors

6SVPE220M

Active
Panasonic Electronic Components

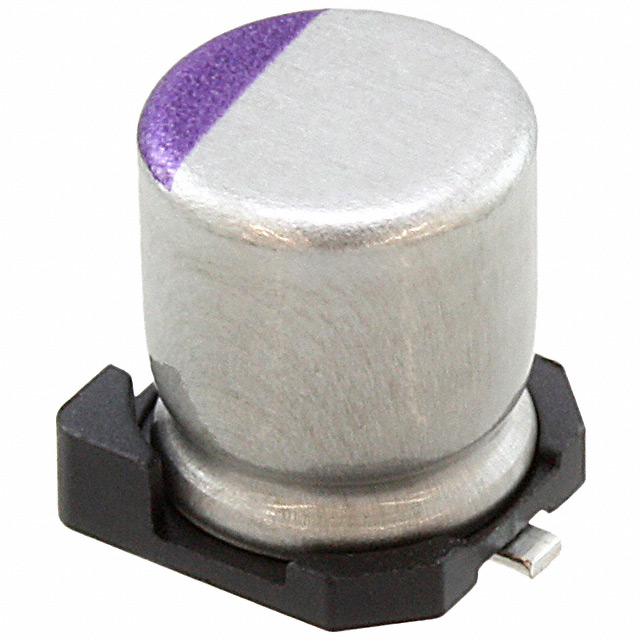

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 220 ΜF, 6.3 V, RADIAL CAN - SMD, 0.01 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1
PANASONIC 16SVPC39MV
Capacitors

6SVPE220M

Active
Panasonic Electronic Components

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 220 ΜF, 6.3 V, RADIAL CAN - SMD, 0.01 OHM

Deep-Dive with AI

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

Specification6SVPE220M
ApplicationsGeneral Purpose
Capacitance220 µF
ESR (Equivalent Series Resistance)10 mOhm
Height - Seated (Max)6 mm
Height - Seated (Max) [Max]0.236 "
Lifetime @ Temp.2000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency3.9 A
Size / Dimension [diameter]0.248 "
Size / Dimension [diameter]6.3 mm
Surface Mount Land Size [x]6.6 mm
Surface Mount Land Size [x]0.26 in
Surface Mount Land Size [y]0.26 in
Surface Mount Land Size [y]6.6 mm
Tolerance20 %
TypePolymer
Voltage - Rated6.3 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.13
10$ 0.66
50$ 0.59
100$ 0.53
500$ 0.44
Digi-Reel® 1$ 1.13
10$ 0.66
50$ 0.59
100$ 0.53
500$ 0.44
N/A 2723$ 1.41
Tape & Reel (TR) 1000$ 0.41
2000$ 0.40
3000$ 0.39
5000$ 0.38
NewarkEach (Supplied on Full Reel) 1000$ 0.42
2000$ 0.40

Description

General part information

6SVPE Series

220 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
