Development Boards, Kits, Programmers

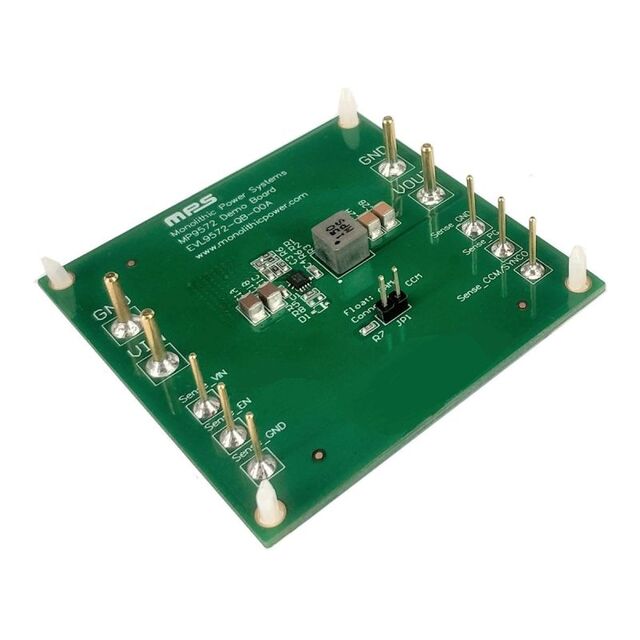

EVL9572-QB-00A

Active

EVAL BOARD FOR MP9572

Search across all available documentation for this part.

Development Boards, Kits, Programmers

Active

EVAL BOARD FOR MP9572

Technical Specifications

Parameters and characteristics for this part

Specification	EVL9572-QB-00A

Board Type	Fully Populated
Contents	Board(s)
Current - Output	2 A
Frequency - Switching	2.2 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	1
Outputs and Type	Non-Isolated, 1 Non-Isolated Output
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	MP9572
Voltage - Input [Max]	60 V
Voltage - Input [Min]	6 V
Voltage - Output	5 V

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Contents	Regulator Topology	Current - Output	Voltage - Output	Main Purpose	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]
Monolithic Power Systems Inc. EVL9572-QB-00A	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	MP9572	Board(s)	Buck	2 A	5 V	DC/DC Step Down	2.2 MHz	6 V	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MP9572 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
