Specification	RR9KE5410LCP-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	VCCI, cETLus, LPS, CE, S-Mark, CB, FCC, EAC, BSMI, UkrSEPRO, PSE, ETL
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5.41 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount, Desktop
Input Connector	IEC 320-C8, Multi-Blade
Input Type	Multi-Blade (Sold Separately), Cord
No Load Power Consumption	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 ░C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

RR9KE5410 Series

Part	Form	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Applications	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Cord Length	Cord Length	Approval Agency	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Region Utilized	Input Connector	Polarization	Output Connector [diameter]	Output Connector [x]	Standard Number
GlobTek, Inc. RR9KE5410T00-IMR6B	Desktop Wall Mount	5.41 A	CoC Tier 2 Level VI	65 W	ITE (Commercial) Medical	12 V	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	-20 ░C	40 °C	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO VCCI	Barrel Plug Kit (1.3mm x 3.5mm	264 VAC	90 VAC	150 mW	International	IEC 320-C8 Multi-Blade
GlobTek, Inc. RR9KE5410LCP-IMR6B	Desktop Wall Mount	5.41 A	CoC Tier 2 Level VI	65 W	ITE (Commercial) Medical	12 V	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	-20 ░C	40 °C	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO VCCI	Barrel Plug	264 VAC	90 VAC	150 mW	International	IEC 320-C8 Multi-Blade	Positive Center	2.5 mm 5.5 mm	11 mm
GlobTek, Inc. RR9KE5410CCP-IMR6B	Desktop Wall Mount	5.41 A	CoC Tier 2 Level VI	65 W	ITE (Commercial) Medical	12 V	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	-20 ░C	40 °C	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO VCCI	Barrel Plug	264 VAC	90 VAC	150 mW	International	IEC 320-C8 Multi-Blade	Positive Center	2.1 mm 5.5 mm	11 mm	60335-1 60601-1 60950-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.31
		5	$ 20.46
		10	$ 20.10
		25	$ 19.64
		50	$ 19.30
		100	$ 18.96
		250	$ 18.53
		500	$ 18.21
	N/A	0	$ 25.61

Description

General part information

RR9KE5410 Series

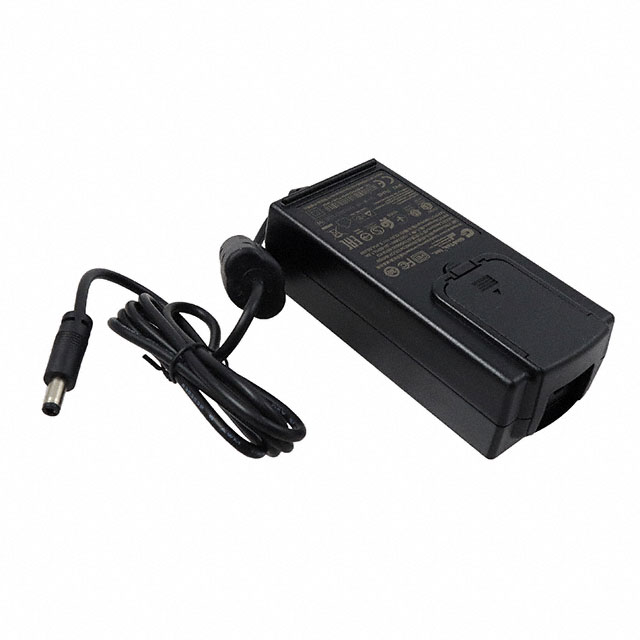

12V 65 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord, Multi-Blade (Sold Separately) Input
