Switches

6GK5S-73

Active

Carling Technologies

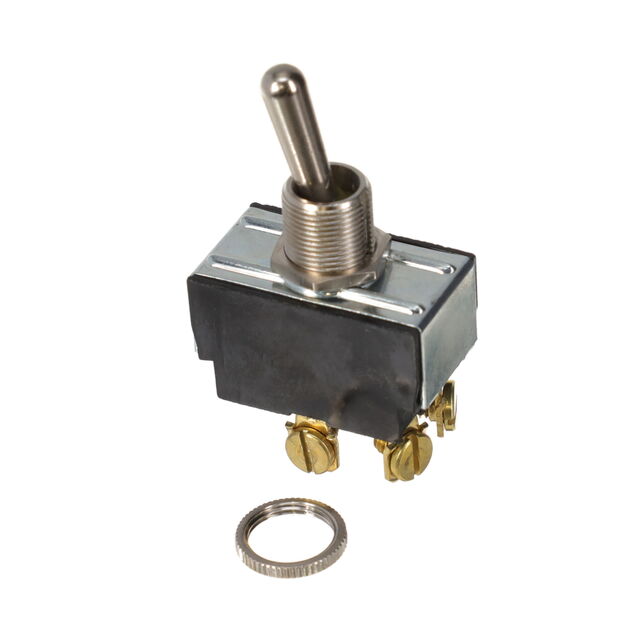

SWITCH TOGGLE DPST-NC 15A 125V

Search across all available documentation for this part.

Switches

Active

Carling Technologies

SWITCH TOGGLE DPST-NC 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	6GK5S-73

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST-NC
Current Rating (Amps)	15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Actuator Length [x]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Bushing Thread	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Type	Switch Function	Electrical Life
Carling Technologies 6GK5S-73	17.45 mm	15 A	12.7 mm	DPST-NC	Screw Terminal	15/32-32	Non-Illuminated	0 °C	85 °C	125 V	Standard Round	On-Mom	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.75

General part information

Toggle Switch DPST-NC Panel Mount

Technical documentation and resources

No documents available
