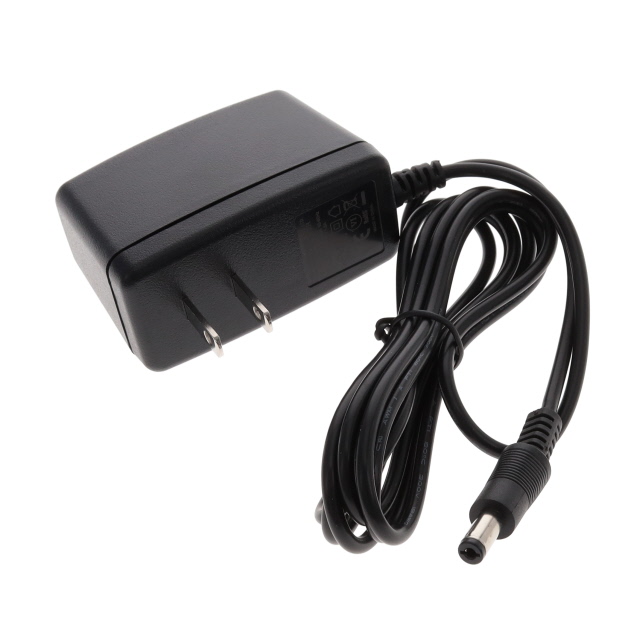

Specification	TRG1507-A-11E03 VI

Applications	ITE (Commercial)
Approval Agency	GS, CE, FCC, cULus, PSE, TUV
Cord Length	70.9 "
Cord Length	1.8 m
Current - Output (Max) [Max]	1.6 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 ░C
Output Connector	Barrel Plug
Output Connector [custom]	2.1 mm
Output Connector [custom]	5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension [x]	2.84 "
Size / Dimension [x]	72 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 in
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V
Weight	0.309 lb
Weight	140 g

TRG1507 Series

Part	Polarization	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	No Load Power Consumption	Region Utilized	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Approval Agency	Power (Watts)	Efficiency	Voltage - Output	Form	Standard Number	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]
Cincon Electronics Co. LTD TRG1507-S-01E03 VI	Positive Center	70.9 "	1.8 m	264 VAC	90 VAC	Fixed Blade	75 mW	Australia	AS 3112	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	1.6 A	CE cULus FCC GS PSE TUV	12 W	CoC Tier 2 Level VI	7.5 V	Wall Mount	60950-1	ITE (Commercial)	-20 ░C	60 °C
Cincon Electronics Co. LTD TRG1507-E-01E03 VI	Positive Center	70.9 "	1.8 m	264 VAC	90 VAC	Fixed Blade	75 mW	Europe	KSC 8305	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	1.6 A	CE cULus FCC GS PSE TUV	12 W	CoC Tier 2 Level VI	7.5 V	Wall Mount	60950-1	ITE (Commercial)	-20 ░C	60 °C
Cincon Electronics Co. LTD TRG1507-U-01E03 VI	Positive Center	70.9 "	1.8 m	264 VAC	90 VAC	Fixed Blade	75 mW	United Kingdom	BS 1363	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	1.6 A	CE cULus FCC GS PSE TUV	12 W	CoC Tier 2 Level VI	7.5 V	Wall Mount (Class I)	60950-1	ITE (Commercial)	-20 ░C	60 °C
Cincon Electronics Co. LTD TRG1507-A-11E03 VI	Positive Center	70.9 "	1.8 m	264 VAC	90 VAC	Fixed Blade	75 mW	North America	NEMA 1-15P	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	1.6 A	CE cULus FCC GS PSE TUV	12 W	CoC Tier 2 Level VI	7.5 V	Wall Mount		ITE (Commercial)	-20 ░C	60 °C	0.309 lb	140 g	2.1 mm	5.5 mm	Barrel Plug	12 mm
Cincon Electronics Co. LTD TRG1507-A-01E03 VI	Positive Center	70.9 "	1.8 m	264 VAC	90 VAC	Fixed Blade	75 mW	North America	NEMA 1-15P	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	1.6 A	CE cULus FCC GS PSE TUV	12 W	CoC Tier 2 Level VI	7.5 V	Wall Mount	60950-1	ITE (Commercial)	-20 ░C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.00
		50	$ 10.73
		100	$ 9.98
	N/A	32	$ 15.30

Description

General part information

TRG1507 Series

7.5V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

TRG15 Cable DC Plug Configuration

Datasheet
