PQG3MRA111

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PQG3MRA111

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Electro-Tin
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Board Guide, Ground
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-34 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic, Glass Filled
Shell Size - Insert	XLR
Termination	Solder

Part	Fastening Type	Termination	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Connector Type	Mounting Feature	Orientation	Color	Mounting Type	Features	Contact Finish - Mating	Material Flammability Rating	Primary Material	Contact Material	Applications	Insert Material
Switchcraft Inc. PQG3MRA111	Latch Lock	Solder	Thermoplastic Glass Filled	85 °C	-34 °C	XLR	Male Pins Receptacle	Flange	Keyed	Black	Panel Mount Right Angle Through Hole	Board Guide Ground	Electro-Tin	UL94 V-0	Plastic	Copper Alloy	Audio	Thermoplastic Glass Filled

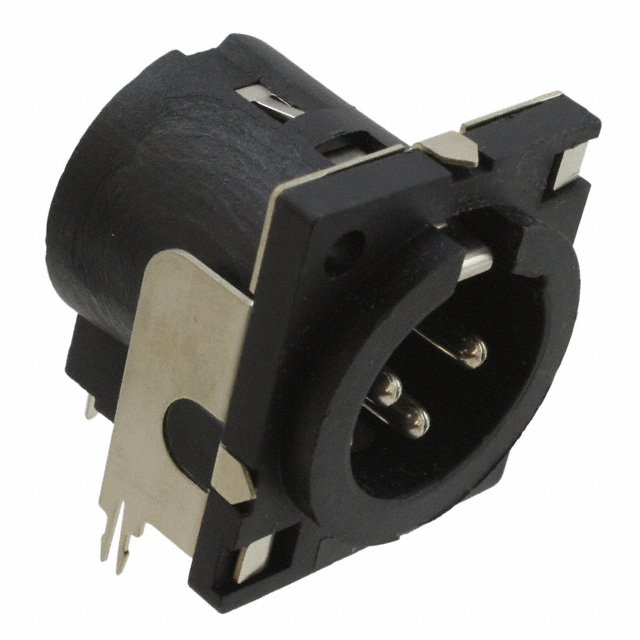

Switchcraft Inc. PQG3MRA112	Latch Lock	Solder	Thermoplastic Glass Filled	85 °C	-34 °C	XLR	Male Pins Receptacle	Flange	Keyed	Black	Panel Mount Right Angle Through Hole	Board Guide Board Lock Ground	Electro-Tin	UL94 V-0	Plastic	Copper Alloy	Audio	Thermoplastic Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.88

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
