Technical Specifications
Parameters and characteristics for this part
| Specification | SK24L-AU_R2_000A1 |
|---|---|
| Capacitance @ Vr, F | 170 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 250 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SMB, DO-214AA |
| Qualification | AEC-Q101 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.26 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.26 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
SK24 Series

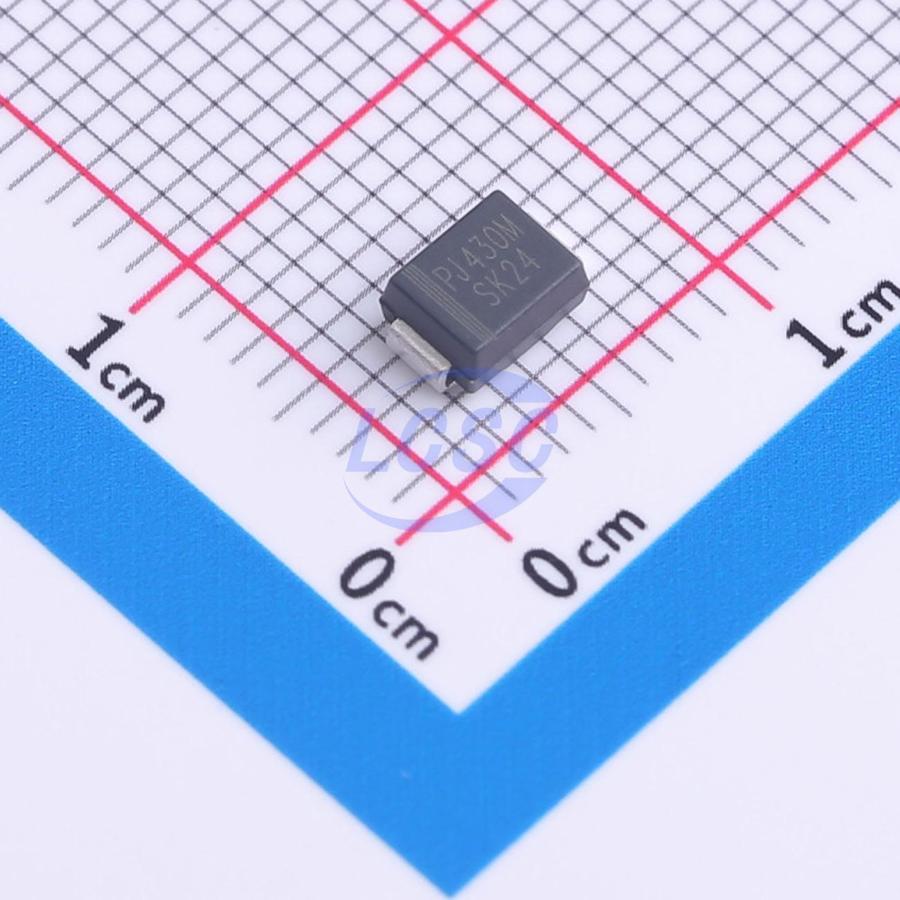

Diode 40 V 2A Surface Mount DO-214AA (SMB)
