Hardware, Fasteners, Accessories

PST-1-01

Active

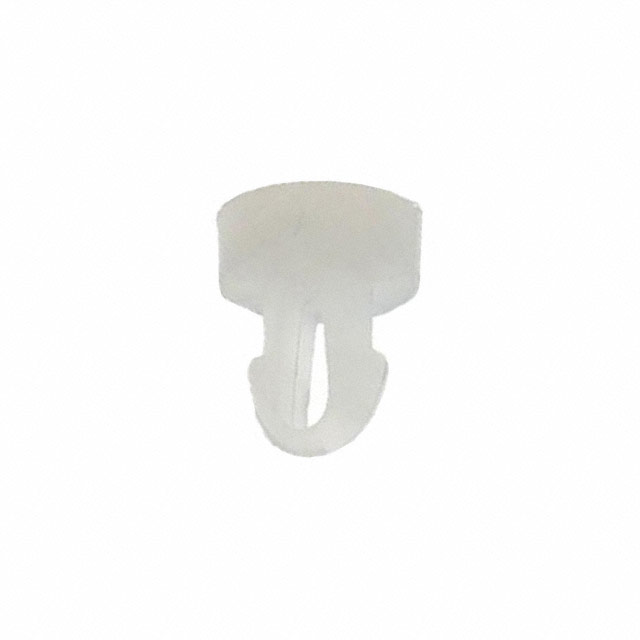

BRD SPT REST MNT SNAP LOCK 1/16"

Search across all available documentation for this part.

Hardware, Fasteners, Accessories

Active

BRD SPT REST MNT SNAP LOCK 1/16"

Technical Specifications

Parameters and characteristics for this part

Specification	PST-1-01

Between Board Height	0.0625 in
Between Board Height	0.063 in
Between Board Height	1.6 mm
Holding Type	Resting Mount
Length - Overall [x]	5.23 mm
Length - Overall [x]	0.206 in
Material	Nylon
Mounting Hole Diameter [diameter]	2.54 mm
Mounting Hole Diameter [diameter]	0.1 in
Mounting Panel Thickness	1.63 mm
Mounting Panel Thickness	0.064 in
Mounting Type	Snap Lock

Part	Length - Overall [x]	Length - Overall [x]	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type
Essentra Components PST-1-01	5.23 mm	0.206 in	Nylon	2.54 mm	0.1 in	0.0625 in	0.063 in	1.6 mm	Snap Lock	1.63 mm	0.064 in	Resting Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Resting Mount / Snap Lock Nylon 0.063" (1.60mm) 1/16"

Technical documentation and resources

No documents available
