Switches

1EN61-6

Active

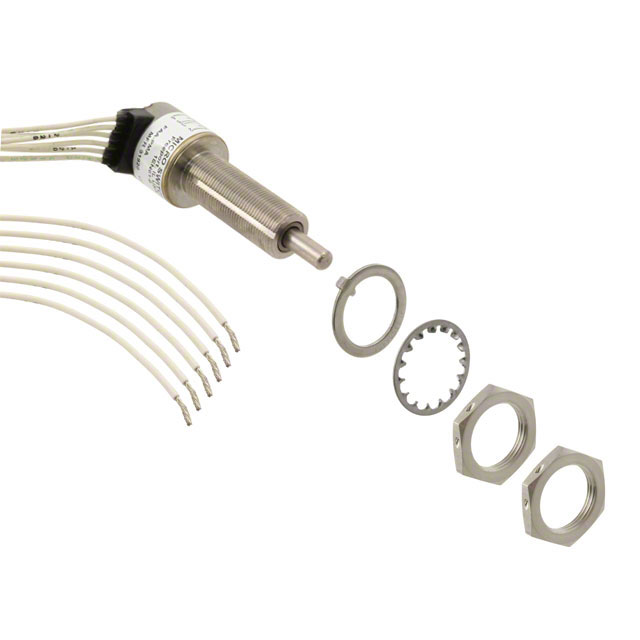

LIMIT SWITCH, TOP PLUNGER, DPDT, 24 A, 460 V, 53.38 N, EN SERIES

Search across all available documentation for this part.

Switches

Active

LIMIT SWITCH, TOP PLUNGER, DPDT, 24 A, 460 V, 53.38 N, EN SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Features [custom]	Features [custom]	Termination Style	Features	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Differential Travel	Differential Travel	Actuator Type	Operating Force [Max]	Operating Force [Min]	Release Force	Pretravel	Pretravel	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions 1EN61-6		6 ft	Wire Leads	Sealed	SPDT x 2	Panel Mount	85 °C	-54 °C	On-Mom	0.5 "	12.7 mm	4 A	0.5 mm	0.02 in	Round (Pin Plunger)	5443 gf	2722 gf	1814 gf	0.04 in	1 mm	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 698.57
	N/A	0	$ 704.46
Newark	Each	1	$ 741.22

General part information

Switch SPDT x 2 Panel Mount
