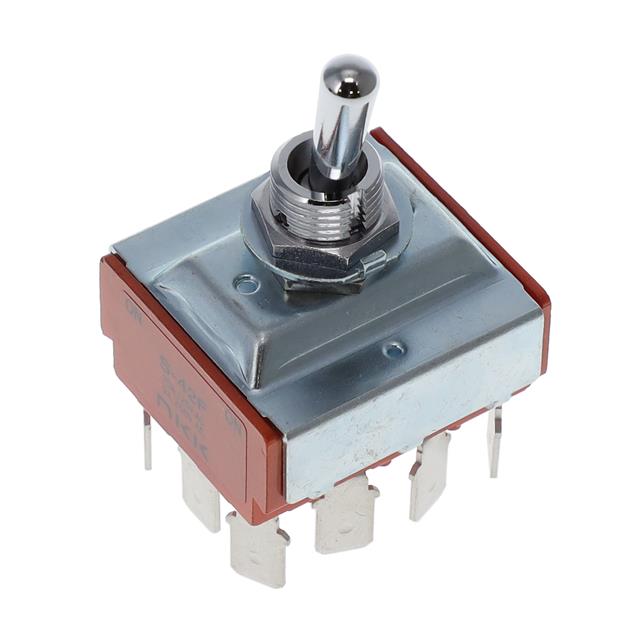

S42F/CUL

Active

NKK Switches

TOGGLE SWITCHES 4PDT ON NONE ON MEDIUM/HIGH CAPACITY

Deep-Dive with AI

DocumentsDatasheet S42F/CUL | Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S42F/CUL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Circuit	4PDT
Current Rating (Amps)	20 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

S Series

Part	Electrical Life	Actuator Material	Mounting Type	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Termination Style	Illumination	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - DC	Current Rating (Amps)	Actuator Length [x]	Ingress Protection
NKK Switches S42F/CUL	25000 Steps	Brass Chrome Plated	Panel Mount	125 V	Standard Round	12.5 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On	4PDT	70 °C	-10 °C	M12 x 1	30 V	20 A	17.5 mm
NKK Switches S41F			Panel Mount	125 V	Standard Round	12.5 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-Off		70 °C	-10 °C	M12 x 1	30 V	20 A	17.5 mm
NKK Switches S822-AT401A			Panel Mount	125 V	Standard Round	12.5 mm	Screw Terminal	Non-Illuminated	On-On	DPDT	70 °C	-10 °C	M12 x 1	30 V	30 A	22 mm
NKK Switches S31F/CUL-AT402A			Panel Mount	125 V	Standard Round	12.5 mm		Non-Illuminated	On-Off	3PST	70 °C	-10 °C	M12 x 1	30 V	20 A	17.5 mm
NKK Switches S32F/CUL			Panel Mount	125 V	Standard Round	12.5 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On	3PDT	70 °C	-10 °C	M12 x 1	30 V	20 A	17.5 mm
NKK Switches S31F-AT402A			Panel Mount	125 V	Standard Round	12.5 mm		Non-Illuminated	On-Off	3PST	70 °C	-10 °C	M12 x 1	30 V	20 A	17.5 mm
NKK Switches S831/U-AT401H			Panel Mount	125 V	Standard Round	12.5 mm	Screw Terminal	Non-Illuminated	On-Off	3PST	70 °C	-10 °C	M12 x 1	30 V	30 A	22 mm
NKK Switches S821/CUL-AT401S			Panel Mount	125 V	Standard Round	12.5 mm	Screw Terminal	Non-Illuminated	On-Off	DPST	70 °C	-10 °C	M12 x 1	30 V	30 A	22 mm
NKK Switches S3AW			Panel Mount	125 V	Standard Round	12.5 mm	Solder Lug	Non-Illuminated	On-Off-On	SPDT	70 °C	-30 ░C	M12 x 1	30 V	15 A 20 A	17.5 mm	IP67 - Dust Tight Waterproof
NKK Switches S333F/U			Panel Mount	125 V	Standard Round	12.5 mm	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-Off-On	DPDT	70 °C	-10 °C	M12 x 1	30 V	25 A	17.5 mm
