Inductors, Coils, Chokes
SRR0735A-220M
NRNDBourns Inc.
IND7.3X7.3X3.5MM,22UH20%1.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
Inductors, Coils, Chokes
SRR0735A-220M
NRNDBourns Inc.
IND7.3X7.3X3.5MM,22UH20%1.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR0735A-220M |
|---|---|
| Current - Saturation (Isat) | 1.28 A |
| Current Rating (Amps) | 1.2 A |
| DC Resistance (DCR) [Max] | 160 mOhm |
| Height - Seated (Max) | 3.7 mm |
| Height - Seated (Max) | 0.146 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 7.3 mm |
| Size / Dimension [y] | 0.287 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
| Part | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Inductance Frequency - Test | Mounting Type | Ratings | Shielding | Tolerance | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) | Height - Seated (Max) | Inductance | Material - Core | Type | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 1.28 A | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 1.2 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 22 µH | Ferrite | Drum Core Wirewound | 160 mOhm |
Bourns Inc. | 1.15 A | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 1.1 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 27 µH | Ferrite | Drum Core Wirewound | 185 mOhm |
Bourns Inc. | 330 mA | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 0.33 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 330 µH | Ferrite | Drum Core Wirewound | 2 Ohm |
Bourns Inc. | 480 mA | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 470 mA | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 150 µH | Ferrite | Drum Core Wirewound | 930 mOhm |
 Bourns Inc. | 800 mA | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 780 mA | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 56 µH | Ferrite | Drum Core Wirewound | 350 mOhm |
Bourns Inc. | 550 mA | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 0.53 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | Ferrite | Drum Core Wirewound | 720 mOhm | |
 Bourns Inc. | 220 mA | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 0.21 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 680 µH | Ferrite | Drum Core Wirewound | 4 Ohm |
Bourns Inc. | 1.4 A | 125 °C | -40 C | Nonstandard | 1 kHz | Surface Mount | AEC-Q200 | Shielded | 20 % | 1.4 A | 7.3 mm | 0.287 " | 0.287 in | 7.3 mm | 3.7 mm | 0.146 in | 18 µH | Ferrite | Drum Core Wirewound | 125 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

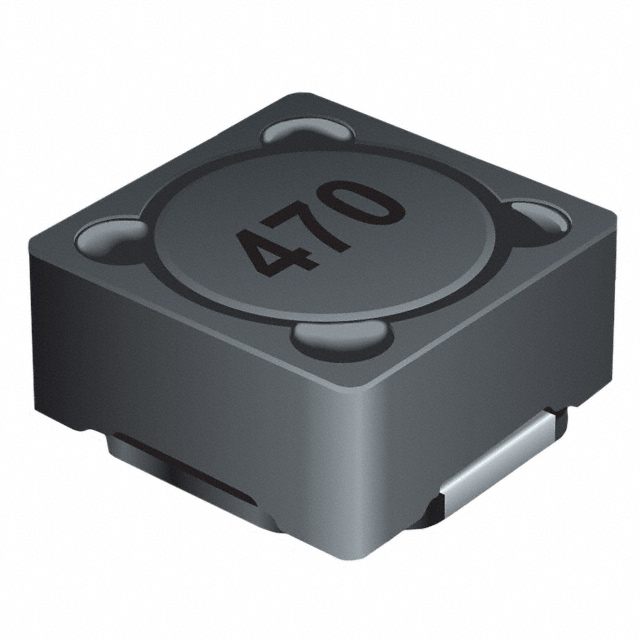

SRR0735A Series
22 µH Shielded Drum Core, Wirewound Inductor 1.2 A 160mOhm Max Nonstandard
