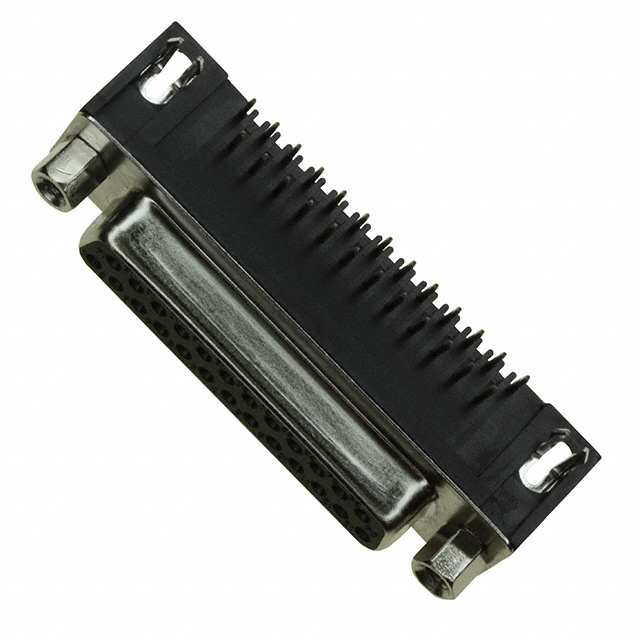

D SUB CONNECTOR, RIGHT ANGLE, DB25, 25 CONTACTS, RECEPTACLE, SOLDER, DB, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +3

Connectors, Interconnects

182-025-213R561

Active

NorComp Inc.

D SUB CONNECTOR, RIGHT ANGLE, DB25, 25 CONTACTS, RECEPTACLE, SOLDER, DB, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +3

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182-025-213R561

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock
Flange Feature	Mating Side, Female Screwlock, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount, Right Angle
Number of Positions	25
Number of Rows [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 C
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector Layout	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

182-025 Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish Thickness	Material Flammability Rating	Features	Flange Feature	Flange Feature	Contact Type	Connector Type	Number of Rows [custom]	Shell Material, Finish	Current Rating (Amps)	Mounting Type	Number of Positions	Connector Style	Contact Finish	Backset Spacing	Backset Spacing	Termination
NorComp Inc. 182-025-113R451	Black	-55 C	105 ░C	Brass	Nylon 9T Polyamide (PA9T)	B DB	3	Flash	UL94 V-0	Grounding Indents	Housing/Shell	4-40	Signal	Plug Male Pins	2	Nickel Plated Steel	5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-113R431	Black	-55 C	105 ░C	Brass	Nylon 9T Polyamide (PA9T)	B DB	3	Flash	UL94 V-0	Grounding Indents	Housing/Shell (Unthreaded)		Signal	Plug Male Pins	2	Nickel Plated Steel	5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-112-431	Black	-55 C	105 ░C		Polyester Glass Filled	B DB	3	Flash	UL94 V-0	Grounding Indents	Housing/Shell (Unthreaded)		Signal	Plug Male Pins	2		5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-112-181	Black	-55 C	105 ░C		Polyester Glass Filled	B DB	3	Flash	UL94 V-0	Ground Strap Grounding Indents	4-40 Mating Side Female Screwlock		Signal	Plug Male Pins	2		5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-212-531	Black	-55 C	105 ░C		Polyester Glass Filled	B DB	3	Flash	UL94 V-0	Board Lock	Housing/Shell	4-40	Signal	Receptacle Female Sockets	2		5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-212-451	Black	-55 C	105 ░C		Polyester Glass Filled	B DB	3	Flash	UL94 V-0		Housing/Shell	4-40	Signal	Receptacle Female Sockets	2		5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-213R481	Black	-55 C	105 ░C		Nylon 9T Polyamide (PA9T)	B DB	3	Flash	UL94 V-0		4-40 Mating Side Female Screwlock		Signal	Receptacle Female Sockets	2	Nickel Plated Steel	5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-112-171	Black	-55 C	105 ░C		Polyester Glass Filled	B DB	3	Flash	UL94 V-0	Ground Strap Grounding Indents	Housing/Shell	4-40	Signal	Plug Male Pins	2		5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-213R561	Black	-55 C	105 ░C		Nylon 9T Polyamide (PA9T)	B DB	3	Flash	UL94 V-0	Board Lock	4-40 Mating Side Female Screwlock		Signal	Receptacle Female Sockets	2	Nickel Plated Steel	5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder
NorComp Inc. 182-025-213R431	Black	-55 C	105 ░C		Nylon 9T Polyamide (PA9T)	B DB	3	Flash	UL94 V-0		Housing/Shell (Unthreaded)		Signal	Receptacle Female Sockets	2	Nickel Plated Steel	5 A	Panel Mount Right Angle Through Hole	25	D-Sub	Gold	8.08 mm	0.318 "	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	4993	$ 3.70
	Tray	1	$ 2.63
		10	$ 2.38
		25	$ 2.26
		50	$ 2.21
		100	$ 2.10
		250	$ 1.85
Newark	Each	100	$ 2.24

Description

General part information

182-025 Series

The 182 series 0.318-inch footprint economy version right angle D-sub Connectors. It has gold flash-plated brass contact with PA9T insulator and nickel plated, steel shell. It also has copper alloy nickel-plated rivet, SPCC tin-plated board lock and zinc alloy nickel-plated screw lock.
