Connectors, Interconnects

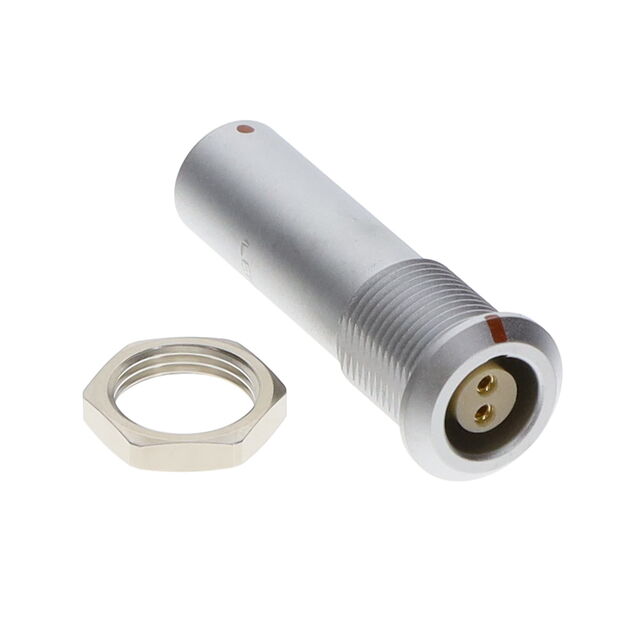

RGG.0B.302.CLM

Active

LEMO

CONN ADAPTER 2P-2P F-F PNL MNT

Search across all available documentation for this part.

Connectors, Interconnects

Active

LEMO

CONN ADAPTER 2P-2P F-F PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	RGG.0B.302.CLM

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Mounting Hardware
Housing Color	Silver
Housing Finish	Chrome
Housing Material	Brass
Includes	1 Adapter, 1 Nut
Ingress Protection	IP50
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	2
Number of Positions (Convert To)	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation (Convert From)	G
Orientation (Convert To)	G
Shell Size - Insert (Convert From)	302
Shell Size - Insert (Convert To) [custom]	302
Shielding	Shielded

Part	Housing Material	Fastening Type	Housing Finish	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Shielding	Shell Size - Insert (Convert From)	Connector Style	Features	Includes	Number of Positions (Convert To)	Current Rating (Amps)	Housing Color	Ingress Protection	Convert To (Adapter End)	Orientation (Convert To)	Number of Positions (Convert From)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Orientation (Convert From)
LEMO RGG.0B.302.CLM	Brass	Push-Pull	Chrome	302	Female Sockets	Shielded	302	Standard	Mounting Hardware	1 Adapter 1 Nut	2	10 A	Silver	IP50	Female Sockets	G	2	-55 °C	250 °C	Bulkhead - Rear Side Nut	G
LEMO RGG.0B.303.CLM	Brass	Push-Pull	Chrome	303	Female Sockets	Shielded	303	Standard	Mounting Hardware	1 Adapter 1 Nut		8 A	Silver	IP50	Female Sockets	G	3	-55 °C	250 °C	Bulkhead - Rear Side Nut	G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.39

General part information

Circular Connector Standard 2/2 Female Sockets/Female Sockets Panel Mount
