RAD.1S.304.CLL

Active

LEMO

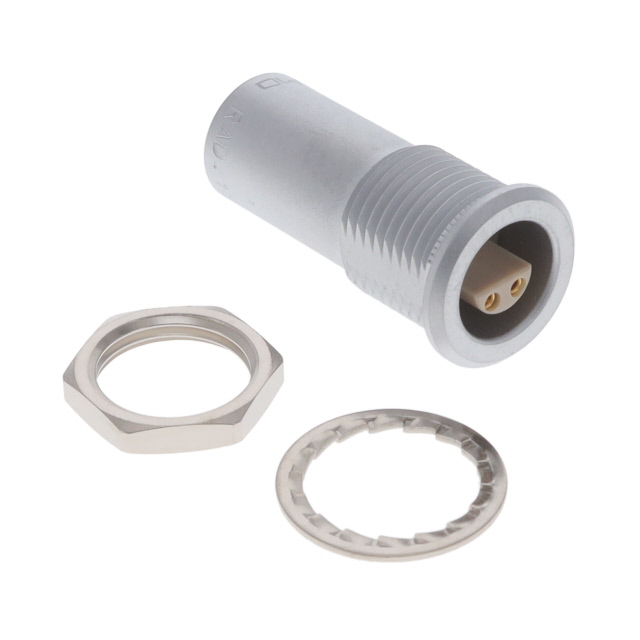

CONN ADPT 4P-4P F/M-F/M PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

RAD.1S.304.CLL

Active

LEMO

CONN ADPT 4P-4P F/M-F/M PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAD.1S.304.CLL

Connector Style	Standard
Convert From (Adapter End)	Female Sockets and Male Pins
Convert To (Adapter End)	Female Sockets, Male Pins
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Mounting Hardware
Housing Color	Silver
Housing Finish	Chrome
Housing Material	Brass
Includes	1 Adapter, 1 Nut, 1 Washer
Ingress Protection	IP50
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	304
Shell Size - Insert (Convert To) [custom]	304
Shielding	Shielded

RAD.1S Series

Part	Mounting Feature	Convert To (Adapter End)	Shell Size - Insert (Convert To) [custom]	Orientation (Convert To)	Orientation (Convert From)	Number of Positions (Convert To)	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Convert From (Adapter End)	Connector Style	Includes	Housing Finish	Fastening Type	Shielding	Housing Material	Number of Positions (Convert From)	Shell Size - Insert (Convert From)	Features	Current Rating (Amps)	Housing Color	Center Gender	Body Material	Body Finish	Adapter Series	Center Contact Plating	Conversion Type	Adapter Type	Impedance	Mating Cycles	Dielectric Material	Style	Shell Size - Insert (Convert To) [custom]
LEMO RAD.1S.304.CLL	Bulkhead - Rear Side Nut	Female Sockets Male Pins	304	Keyed	Keyed	4	-55 °C	250 °C	IP50	Female Sockets and Male Pins	Standard	1 Adapter 1 Nut 1 Washer	Chrome	Push-Pull	Shielded	Brass	4	304	Mounting Hardware	10 A	Silver
LEMO RAD.1S.650.CTM	Bulkhead	NIM-CAMAC CD/N 549 Triaxial Jack Female Socket					-55 °C	250 °C	IP50	NIM-CAMAC CD/N 549 Triaxial Jack Female Socket		1 Connector 1 Lockwasher 1 Nut		Push-Pull								Female to Female	Brass	Chrome	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Gold	Same Series	Jack to Jack	50 Ohms	5000	Polytetrafluoroethylene (PTFE)	Straight
LEMO RAD.1S.302.CLL	Bulkhead - Rear Side Nut	Female Sockets Male Pins	302	Keyed	Keyed	2	-55 °C	250 °C	IP50	Female Sockets and Male Pins	Standard	1 Adapter 1 Nut 1 Washer	Chrome	Push-Pull	Shielded	Brass	2	302	Mounting Hardware	15 A	Silver
LEMO RAD.1S.306.CLL	Bulkhead - Rear Side Nut	Female Sockets Male Pins		Keyed	Keyed	6	-55 °C	250 °C	IP50	Female Sockets and Male Pins	Standard	1 Adapter 1 Nut 1 Washer	Chrome	Push-Pull	Shielded	Brass	6	306	Mounting Hardware	7 A	Silver												306
LEMO RAD.1S.250.CTM	Bulkhead						-55 °C	250 °C	IP50	NIM-CAMAC CD/N 549 Jack Female Socket		1 Connector 1 Lockwasher 1 Nut		Push-Pull								Female to Female	Brass	Chrome	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Gold	Same Series	Jack to Jack	50 Ohms	1000	Polytetrafluoroethylene (PTFE)	Straight
