Connectors, Interconnects

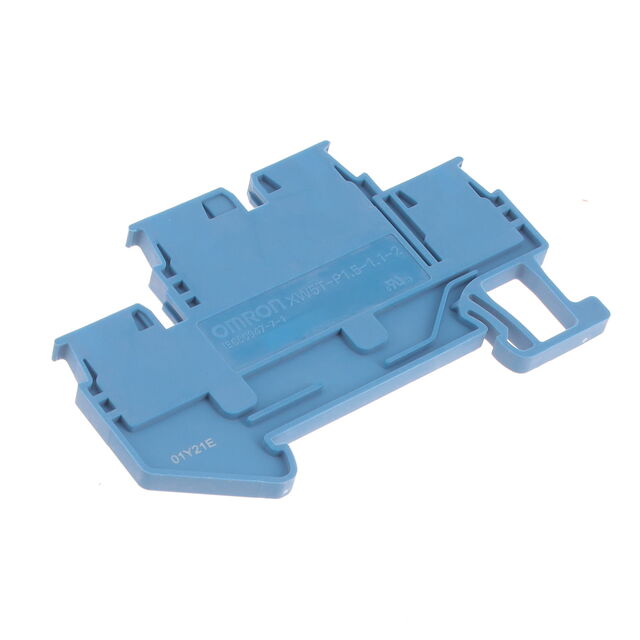

XW5T-P1.5-1.1-2BL
ActiveOmron Electronics Inc-EMC Div
TERM BLK PUSHIN1.5MM 1:1 2TIER B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XW5T-P1.5-1.1-2BL |
|---|---|
| Color | Blue |
| Current - IEC | 17.5 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 8 mm |
| Terminal - Width [y] | 3.5 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.56 | |
| 10 | $ 5.17 | |||
| 25 | $ 4.92 | |||
| 50 | $ 4.47 | |||
| 100 | $ 4.29 | |||
| 250 | $ 3.78 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.29 | |||
Description
General part information
XW5T-P1 Series
Terminal Block Connector 4 Position Feed Through Blue 14-26 AWG
