Development Boards, Kits, Programmers

SM1212E433

Obsolete

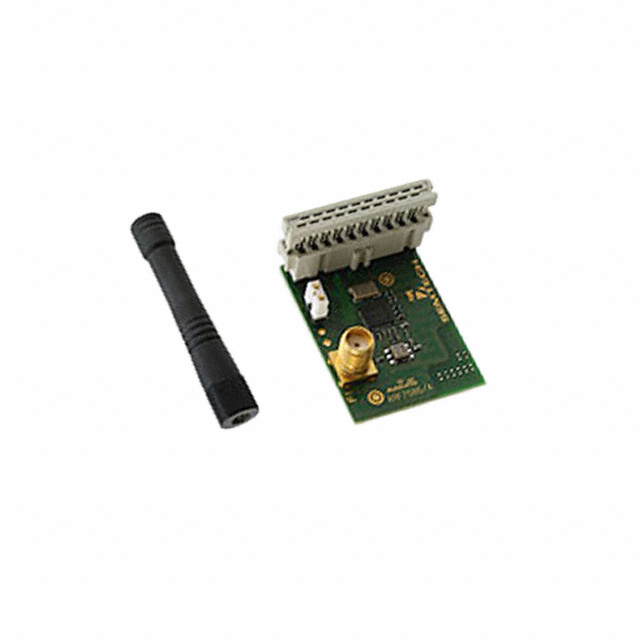

RF EVAL FOR SX1212 433MHZ ISM

Search across all available documentation for this part.

Development Boards, Kits, Programmers

Obsolete

RF EVAL FOR SX1212 433MHZ ISM

Technical Specifications

Parameters and characteristics for this part

Specification	SM1212E433

Contents	Board(s)
For Use With/Related Products	SX1212E
Frequency	433 MHz
Supplied Contents	Board(s)
Type	Transceiver
Utilized IC / Part	SX1212E

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation	Serial Interfaces	Frequency	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Power - Output	Antenna Type	Data Rate	Current - Transmitting [Min]	Current - Transmitting [Max]	Utilized IC / Part	Protocol	Mounting Type	Current - Receiving	For Use With/Related Products	Supplied Contents	Contents	Type
Semtech Corporation SM1211E868	3.6 V	2.1 V	FSK OOK	SPI	868 MHz	-113 dBm	85 °C	-40 C	802.15.4	12.5 dBm	Antenna Not Included U.FL	25 kbps	16 mA	25 mA	SX1211	Zigbee®	Surface Mount	3 mA
Semtech Corporation SM1212E433					433 MHz										SX1212E				SX1212E	Board(s)	Board(s)	Transceiver
Semtech Corporation SM1211E915	3.6 V	2.1 V	FSK OOK	SPI	960 MHz	-113 dBm	85 °C	-40 C	802.15.4	12.5 dBm	Antenna Not Included U.FL	25 kbps	16 mA	25 mA	SX1211	Zigbee®	Surface Mount	3 mA
Semtech Corporation SM1211E915TOPIC					915 MHz										SX1211				SX1211	Board(s)	Board(s)	Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

- SX1212E Transceiver 433MHz Evaluation Board

Technical documentation and resources

No documents available
