PD3FSC2

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SOLDER

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PD3FSC2

Applications	Audio
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Ground
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Primary Material	Plastic
Shell Size - Insert	XLR

Part	Fastening Type	Features	Connector Type	Shell Size - Insert	Mounting Feature	Color	Material Flammability Rating	Insert Material	Primary Material	Applications	Contact Finish - Mating	Contact Material

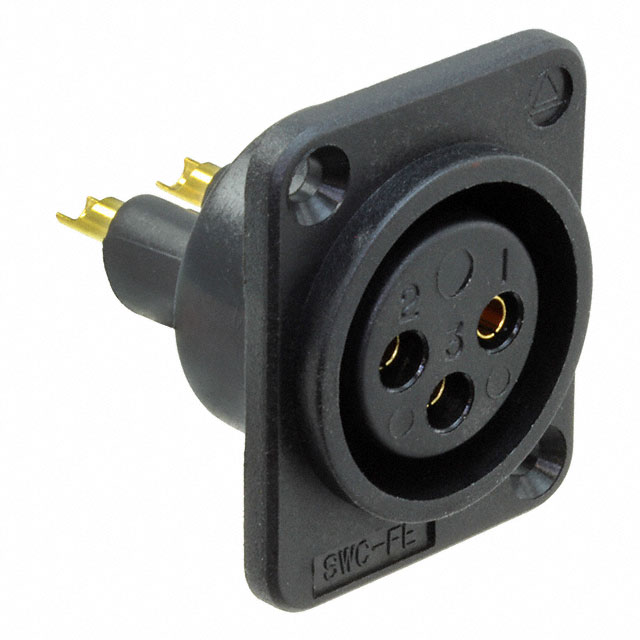

Switchcraft Inc. PD3FSC1AU	Push-Pull	Ground	Female Sockets Plug	XLR	Flange	Black	UL94 V-0	Thermoplastic	Plastic	Audio	Gold	Copper Alloy
Switchcraft Inc. PD3FSC2	Push-Pull	Ground	Female Sockets Plug	XLR	Flange	Black	UL94 V-0	Thermoplastic	Plastic	Audio	Silver	Copper Alloy

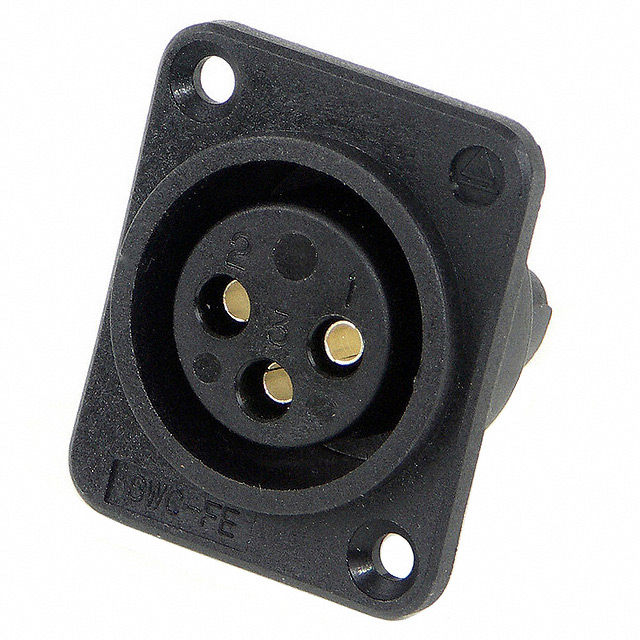

Switchcraft Inc. PD3FSC1	Push-Pull	Ground	Female Sockets Plug	XLR	Flange	Black	UL94 V-0	Thermoplastic	Plastic	Audio	Silver	Copper Alloy
Switchcraft Inc. PD3FSC2AU	Push-Pull	Ground	Female Sockets Plug	XLR	Flange	Black	UL94 V-0	Thermoplastic	Plastic	Audio	Gold	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.42

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
