RF and Wireless

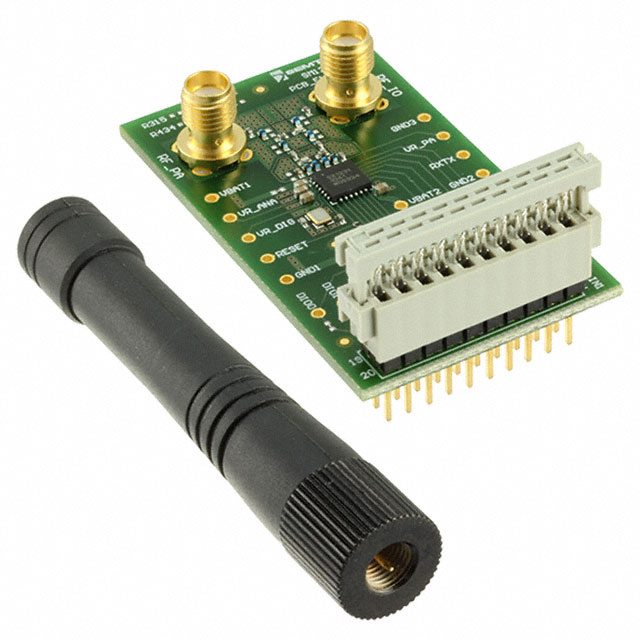

SM1231E433A

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZSMD

Search across all available documentation for this part.

RF and Wireless

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZSMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Modulation	Mounting Type	Package / Case	Utilized IC / Part	Current - Receiving	RF Family/Standard	Sensitivity	Frequency	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Antenna Type	Supplied Contents	For Use With/Related Products	Type
Semtech Corporation SM1231E433A	85 °C	-40 °C	3.6 V	1.8 V	SPI	FSK GFSK GMSK MSK OOK	Surface Mount	Module	SX1231	16 mA	General ISM < 1GHz	-120 dBm	433 MHz	16 mA	95 mA	17 dBm	Antenna Not Included
Semtech Corporation SM1230E868-915A													868 MHz					Board(s)	SX1230	Transmitter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 433MHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
