Optoelectronics

6773232322F

Active

DIALIGHT

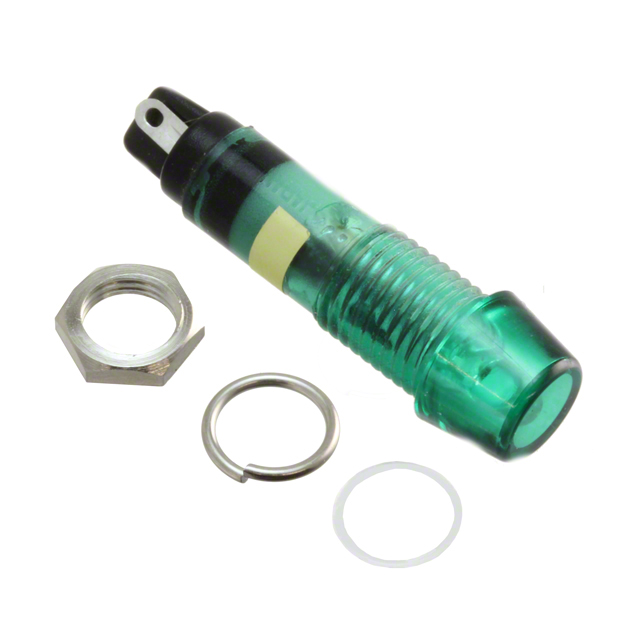

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 5500MCD 2-PIN

Search across all available documentation for this part.

Optoelectronics

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 5500MCD 2-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	6773232322F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Green
Millicandela Rating	5500 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	6 V

Part	Ratings	Millicandela Rating	Ingress Protection	Current	Voltage	Lamp Color	Termination Style	Type	Panel Cutout Shape	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle
DIALIGHT 6773232322F	DC	5500 mcd	IP66 NEMA 4X	30 mA	6 V	Green	Solder Lug	LED	Round	7.11 mm	0.28 "
DIALIGHT 6773232342F	DC	12000 mcd	IP66 NEMA 4X	30 mA	24 V	Green	Solder Lug	LED	Round			525 nm	7.2 mm	0.28 in	25 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 6V 30mA Solder Lug
