Zenode.ai Logo
Beta
Log InSign Up
HARWIN M80-4611242
Connectors, Interconnects

M80-4612642

Active
Harwin Inc.

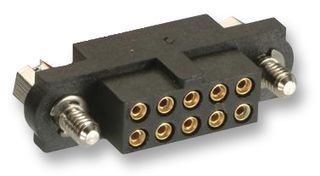

WIRE-TO-BOARD CONNECTOR, DUAL IN LINE, DATAMATE J-TEK M80 SERIES, CRIMP, RECEPTACLE, 26, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENManufacturer Catalogue EN+5
HARWIN M80-4611242
Connectors, Interconnects

M80-4612642

Active
Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DUAL IN LINE, DATAMATE J-TEK M80 SERIES, CRIMP, RECEPTACLE, 26, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image ENManufacturer Catalogue EN+5

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-4612642
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
FeaturesJackscrews
Mounting TypeFree Hanging (In-Line)
Number of Positions26
Number of Rows [custom]2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG
Wire TypeDiscrete

M80-461 Series

PartCable TerminationColorContact Finish ThicknessContact Finish ThicknessConnector TypeMounting TypePitch [x]Pitch [x]Wire TypeContact FinishNumber of PositionsRow SpacingRow SpacingNumber of Rows [custom]Wire Gauge [Min]Wire Gauge [Max]FeaturesContact Type
HARWIN M80-4611242
Harwin Inc.
M80-4612642
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
26
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4610442
Harwin Inc.
M80-4610442
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
4
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4615042
Harwin Inc.
M80-4615042
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
50
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4611642
Harwin Inc.
M80-4612405
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
24
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
HARWIN M80-4615042
Harwin Inc.
M80-4611042
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
10
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4611805
Harwin Inc.
M80-4611842
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
18
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
HARWIN M80-4611242
Harwin Inc.
M80-4611242
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
12
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4611642
Harwin Inc.
M80-4612442
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
24
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4611205
Harwin Inc.
M80-4611205
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
12
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket
M80-4611005
Harwin Inc.
M80-4611005
Crimp
Black
0.3 Ám
11.8 Áin
Receptacle
Free Hanging (In-Line)
0.079 in
2 mm
Discrete
Gold
10
2 mm
0.079 in
2
24 AWG
28 AWG
Jackscrews
Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.27
10$ 23.88
25$ 22.85
50$ 22.11
100$ 21.37
250$ 20.20
500$ 19.61
N/A 105$ 28.22
NewarkEach 1$ 28.22
10$ 23.00
25$ 21.21
50$ 19.94
100$ 18.76
250$ 18.19

Description

General part information

M80-461 Series

26 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
