PD3MSC2

Obsolete

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Connectors, Interconnects

Obsolete

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PD3MSC2

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Ground
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Primary Material	Plastic
Shell Size - Insert	XLR

Part	Fastening Type	Shell Size - Insert	Applications	Features	Material Flammability Rating	Color	Insert Material	Mounting Feature	Connector Type	Contact Material	Contact Finish - Mating	Primary Material	Mounting Type	Termination
Switchcraft Inc. PD3MSC1AU	Push-Pull	XLR	Audio	Ground	UL94 V-0	Black	Thermoplastic	Flange	Male Pins Receptacle	Copper Alloy	Gold	Plastic

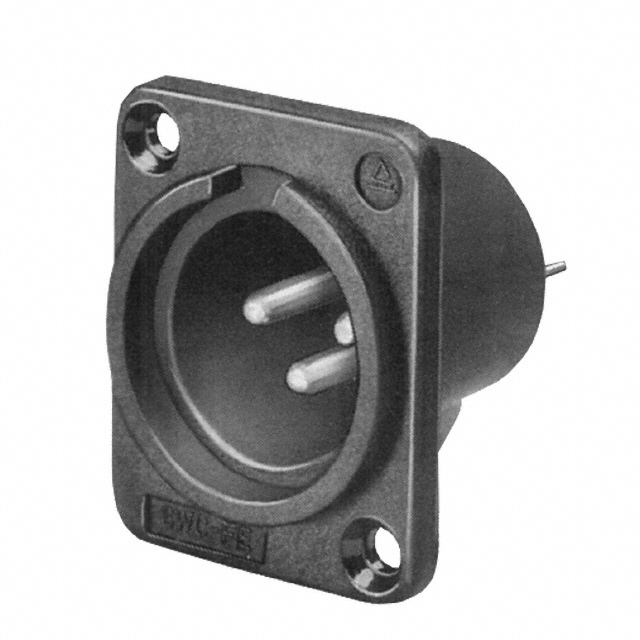

Switchcraft Inc. PD3MS1	Push-Pull	XLR	Audio	Ground	UL94 V-0	Black	Thermoplastic	Flange	Male Pins Receptacle	Copper Alloy	Silver	Plastic	Panel Mount Through Hole	Solder

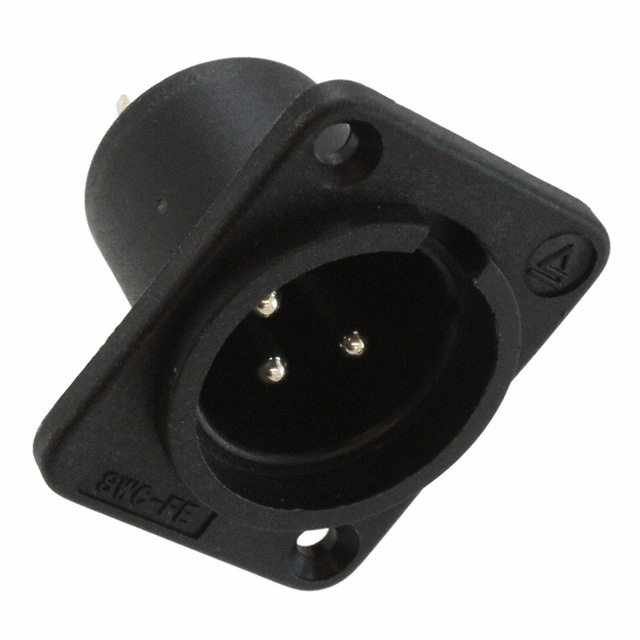

Switchcraft Inc. PD3MSC1	Push-Pull	XLR	Audio	Ground	UL94 V-0	Black	Thermoplastic	Flange	Male Pins Receptacle	Copper Alloy	Silver	Plastic
Switchcraft Inc. PD3MSC2	Push-Pull	XLR	Audio	Ground	UL94 V-0	Black	Thermoplastic	Flange	Male Pins Receptacle	Copper Alloy	Silver	Plastic
Switchcraft Inc. PD3MSC3	Push-Pull	XLR	Audio	Ground	UL94 V-0	Black	Thermoplastic	Flange	Male Pins Receptacle	Copper Alloy	Silver	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
