Specification	SNP90GHS0X2

Color	Black
Features	Heat Stabilized, Impact Resistant
Length [Max]	82.19 mm
Length [Max]	3.236 in
Length [Min]	49.17 mm
Length [Min]	1.936 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.73 mm
Material Thickness	0.068 in
Opening Size [Max]	101.8 mm
Opening Size [Max]	4.008 in
Opening Size [Min]	91.01 mm
Opening Size [Min]	3.583 in

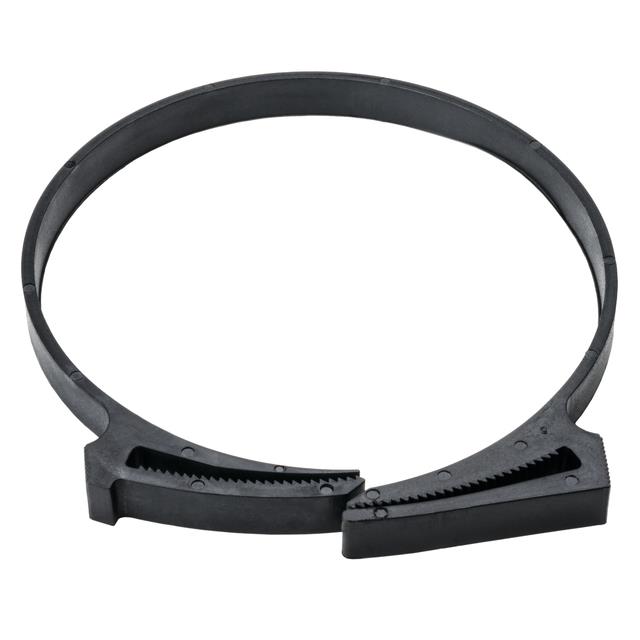

Type	Clamp, Hose
Type Attributes	Push-Fit
Width	9.88 mm
Width [y]	0.389 in

SNP90G Series

Part	Material Flammability Rating	Material	Color	Features	Width [y]	Width	Material Thickness	Material Thickness	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Length [Min]	Length [Max]	Length [Max]	Length [Min]	Type	Type Attributes
HELLERMANNTYTON SNP90GHS0X2	UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Heat Stabilized Impact Resistant	0.389 in	9.88 mm	1.73 mm	0.068 in	101.8 mm	91.01 mm	4.008 in	3.583 in	49.17 mm	82.19 mm	3.236 in	1.936 in	Clamp Hose	Push-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
