Industrial Supplies

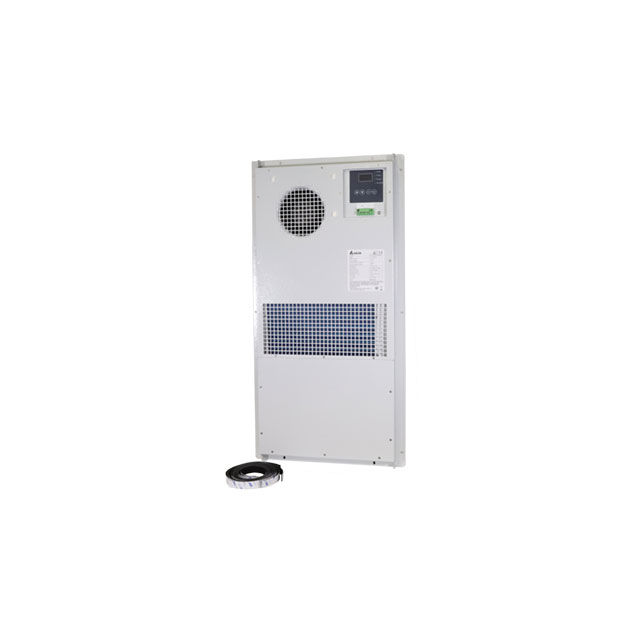

HEC0800PC

Active

CABINET COOLER / AIR CONDITIONER

Search across all available documentation for this part.

Industrial Supplies

Active

CABINET COOLER / AIR CONDITIONER

Technical Specifications

Parameters and characteristics for this part

Specification	HEC0800PC

Approval Agency	CE, TUV, cURus
BTU's	2720 BTU's
Depth [z]	7.9 "
Frequency	50 Hz, 60 Hz
Height [z]	27.6 in
Size / Dimension [x]	424.2 mm
Size / Dimension [x]	16.7 in
Size / Dimension [y]	6.4 in
Size / Dimension [y]	162.6 mm
Size / Dimension [z]	838.2 mm
Size / Dimension [z]	33 "
Specifications	2720 BTU
Specifications	D/C Unit
Type	Air Conditioning Unit, Air Conditioner
Voltage	48 V
Voltage - Input [Max]	58 V
Voltage - Input [Min]	42 VDC
Width (Inches) [x]	19.7 Inches

Part	Specifications	Specifications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	BTU's	Width (Inches) [x]	Approval Agency	Height [z]	Voltage	Frequency	Depth [z]
Delta Electronics HEC0800PC	2720 BTU	D/C Unit	Air Conditioner Air Conditioning Unit	42 VDC	58 V	6.4 in	424.2 mm	838.2 mm	162.6 mm	33 "	16.7 in	2720 BTU's	19.7 Inches	CE cURus TUV	27.6 in	48 V	50 Hz 60 Hz	7.9 "

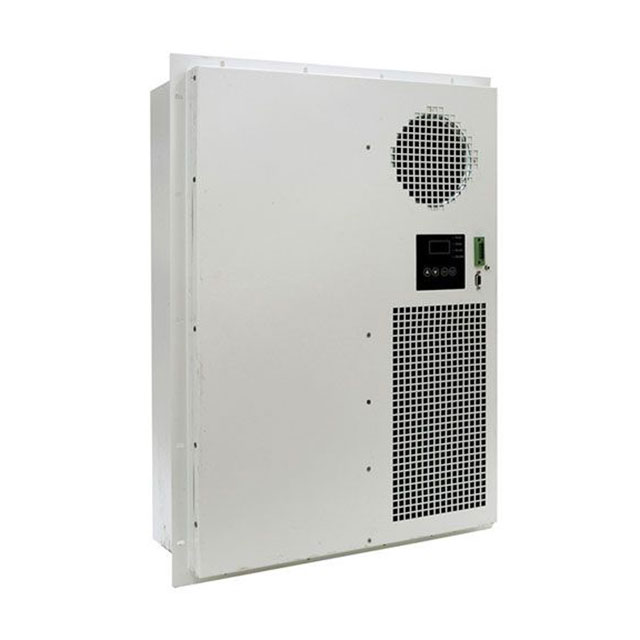

Delta Electronics HEC0800PB	2720 BTU	D/C Unit	Air Conditioner Air Conditioning Unit	40 V	58 V	7.87 in	550.5 mm	750.5 mm	200 mm	29.55 in	21.67 in	2720 BTU's	19.7 Inches	CE cURus TUV	27.6 in	48 V	50 Hz 60 Hz	7.9 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rack D/C Unit, 2720 BTU 16.70" L x 6.40" W x 33.00" H (424.2mm x 162.6mm x 838.2mm)
