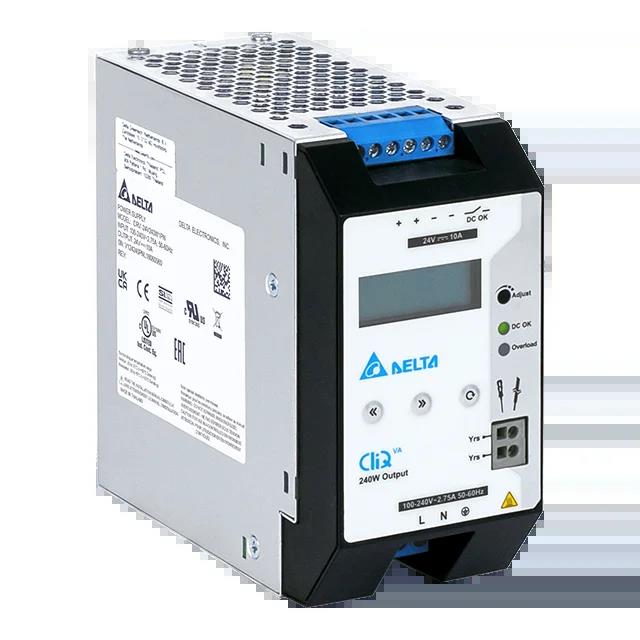

Specification	DRV-24V240W1PN

AC Voltage - Input [Max]	276 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CB Scheme, CE, EN, SIQ, UL
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	88 V
Efficiency	94.73 %
Features	Universal Input, Adjustable Output, IP20, PFC
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 Watts
Size / Dimension [x]	139 mm
Size / Dimension [x]	5.47 in
Size / Dimension [y]	2.36 "
Size / Dimension [y]	60 mm
Size / Dimension [z]	4.88 in
Size / Dimension [z]	124 mm
Standard Number	55011, 61000-6-3, 61000-6-2, 55024, 508, 61000-3-3, 55032, 61000-3-2, 61204-3, 50581, 60950-1, 61000-6-1, 61000-6-4
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

DRV-24 Series

Part	Voltage - Output 1	Input Type	DC Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Voltage - Isolation	Standard Number	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Applications	Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]
Delta Electronics DRV-24V240W1PN	24 V	AC or DC	88 V	240 Watts	94.73 %	3000 V	50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 61204-3	276 VAC	85 VAC	10 A	Industrial ITE (Commercial)	Adjustable Output IP20 PFC Universal Input	1	4.88 in	2.36 "	60 mm	139 mm	124 mm	5.47 in	CB Scheme CE EN SIQ UL	70 °C	-25 °C	375 V
