M80-4210805

Active

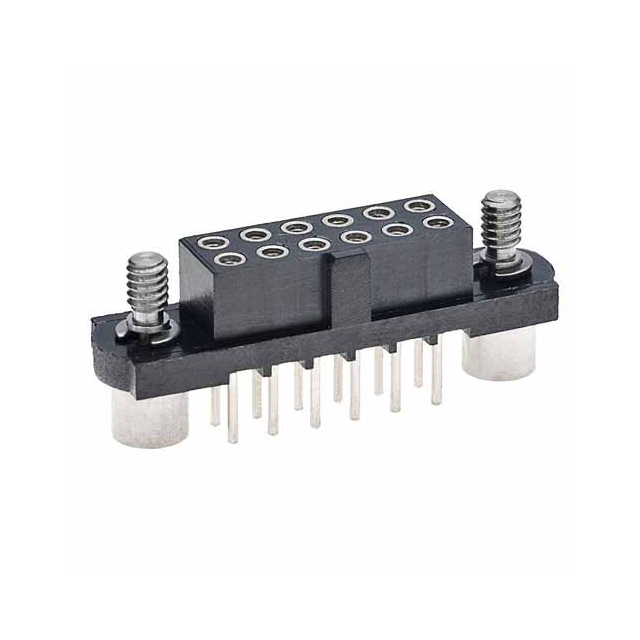

4+4 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Connectors, Interconnects

Active

4+4 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4210805

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 Áin
Contact Finish Thickness - Mating	0.3 Ám
Contact Finish Thickness - Post	10 Áin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	4.6 mm
Contact Length - Post	0.181 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key, Jackscrews, Mounting Flange
Insulation Color	Black
Insulation Height	5.2 mm
Insulation Height	0.205 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Pitch - Mating	0.079 "
Pitch - Mating	2 mm
Row Spacing - Mating	2 mm
Row Spacing - Mating	0.079 in
Style	Cable, Board to Board
Termination	Solder
Voltage Rating	120 VDC

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Applications	Insulation Material	Insulation Height	Insulation Height	Voltage Rating	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows [custom]	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Features	Contact Finish - Post	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color
Harwin Inc. M80-4210805	10 Áin	0.25 çm	Circular	Beryllium Copper	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	5.2 mm	0.205 "	120 VDC	Receptacle	Solder	-55 C	125 °C	8	2	UL94 V-0	Board to Board Cable	12 Áin	0.3 Ám	2 mm	0.079 in	7.3 mm 7.55 mm	Female Socket	All	0.079 "	2 mm	Gold	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	Through Hole	4.6 mm	0.181 in	Black
