Technical Specifications
Parameters and characteristics for this part
| Specification | MB420L_R1_00001 |
|---|---|
| Capacitance @ Vr, F | 80 pF |
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage @ Vr | 5 ÁA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

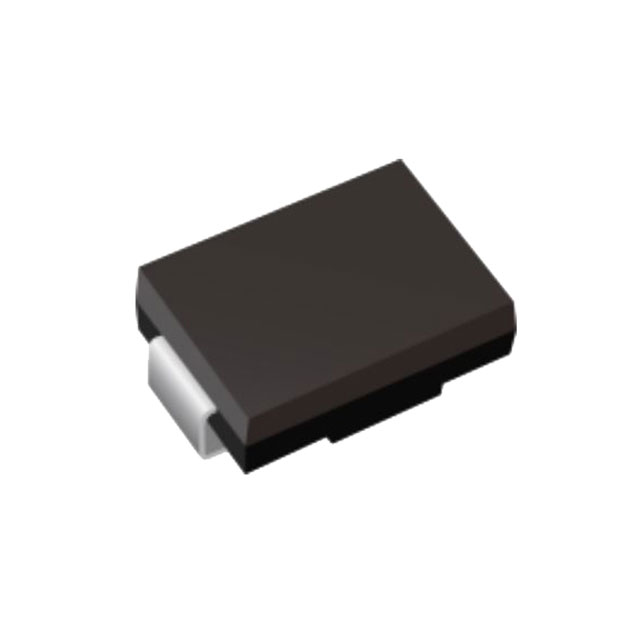

| Package / Case | DO-214AB, SMC |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 500 ns, 200 mA |
| Supplier Device Package | DO-214AB (SMC) |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 860 mV |
