Technical Specifications
Parameters and characteristics for this part
| Specification | DHS-B9292-05A |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 64 mm |
| Fin Height | 2.519 in |
| Length | 91.5 mm |
| Length | 3.602 in |
| Material | Aluminum |
| Package Cooled | LGA |
| Shape | Square, Fins |
| Thermal Resistance @ Natural | 0.17 °C/W |
| Type | Board Level |
| Width | 91.5 mm |
| Width [y] | 3.602 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.00 | |
Description
General part information

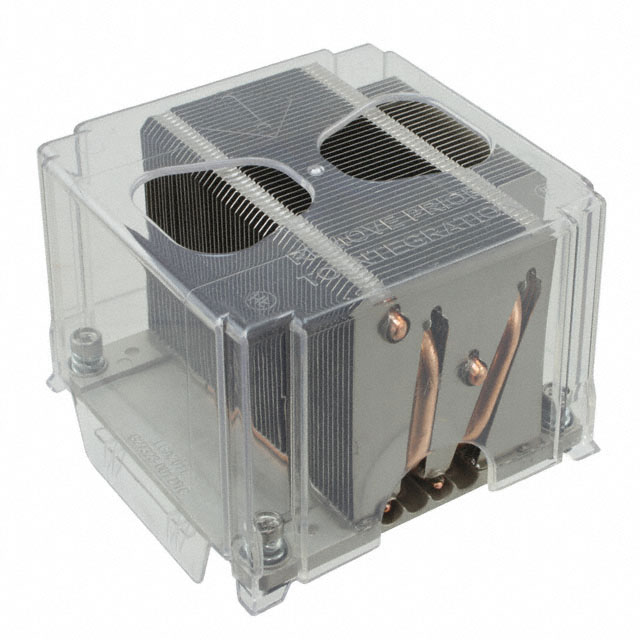

DHS-B9292 Series
Heat Sink LGA Aluminum Board Level
