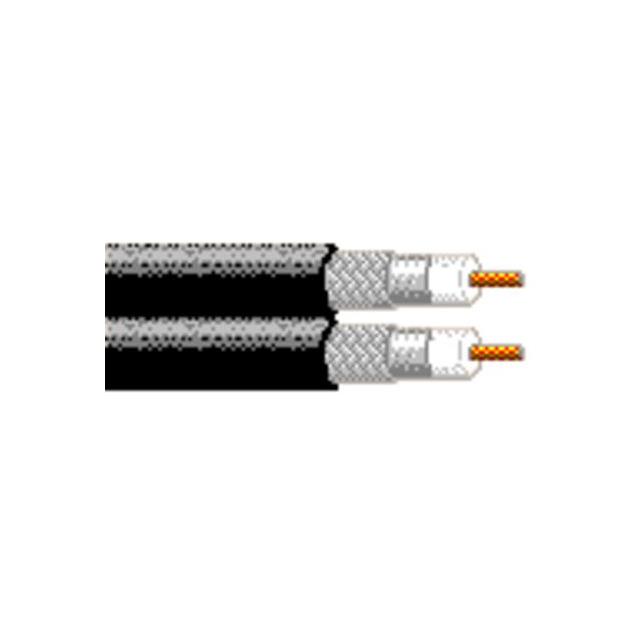

CBL COAX RG-6, DUAL 18AWG 1000'

Search across all available documentation for this part.

Cables, Wires

Obsolete

CBL COAX RG-6, DUAL 18AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1841A 0101000

Cable Group	RG-6, Dual
Cable Type	Coaxial
Conductor Material	Copper Coated, Steel
Conductor Strand	Solid (2)
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	304.8 m
Length [x]	1000 ft
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-40 C
Shield Coverage [custom]	100 %, 60 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG
Wire Gauge [custom]	2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Shield Material	Shield Coverage [custom]	Shield Type	Length [x]	Length [x]	Cable Type	Cable Group	Conductor Strand	Wire Gauge [custom]	Wire Gauge	Jacket (Insulation) Material	Impedance	Jacket Color
Belden Inc. 1841A 0101000	80 °C	-40 C	Foam Polyethylene (FPE)	83	0.18 in	4.57 mm	Copper Coated Steel	Aluminum	60 % 100 %	Braid Foil	304.8 m	1000 ft	Coaxial	RG-6 Dual	Solid (2)	2	18 AWG	Poly-Vinyl Chloride (PVC)	75 Ohms	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.46

General part information

Coaxial Cable 18 AWG (2) RG-6, Dual 1000.0' (304.80m) 75 Ohms
