Optoelectronics
HLMP-Y601-JK000
ActiveBroadcom Limited

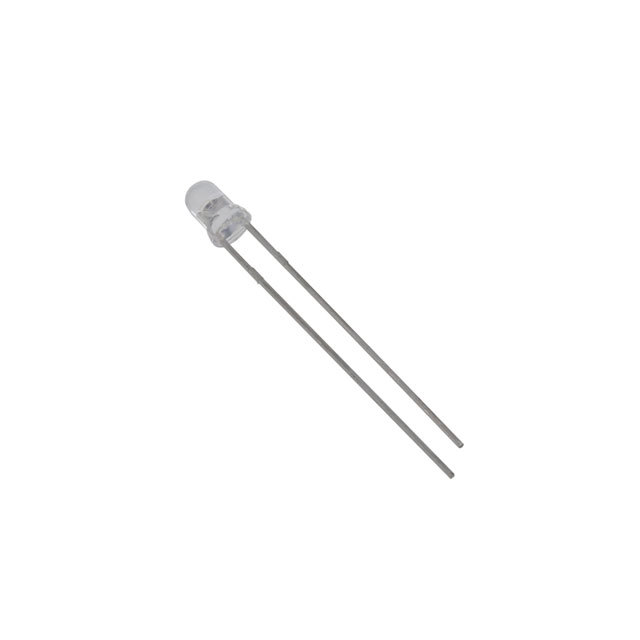

LED RED CLEAR T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Optoelectronics
HLMP-Y601-JK000
ActiveBroadcom Limited
LED RED CLEAR T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-Y601-JK000 |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 6.45 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 680 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 3.1 mm |
| Supplier Device Package | T-1 |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 627 nm |
| Wavelength - Peak | 633 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.17 | |
| 6000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
| 50000 | $ 0.14 | |||
Description
General part information
HLMP-Y601 Series
Red 627nm LED Indication - Discrete 2V Radial
