Technical Specifications
Parameters and characteristics for this part
| Specification | CCM15S/90 |
|---|---|
| Card Size Range [x] | 9.6 in |
| Card Size Range [x] | 243.84 mm |
| Card Size Range [z] | 158.75 mm |
| Card Size Range [z] | 6.25 in |
| Guide Method | No Card Guide |
| Height | 4 U |
| Height | 177.8 mm |
| Height | 7 in |
| Material | Aluminum |
| Size / Dimension [x] | 12 " |
| Size / Dimension [x] | 304.8 mm |
| Size / Dimension [y] | 19 " |
| Size / Dimension [y] | 482.6 mm |
| Type | Assembled Card Mount Subracks |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 244.59 | |
| 5 | $ 213.20 | |||
| N/A | 2 | $ 253.40 | ||
Description
General part information

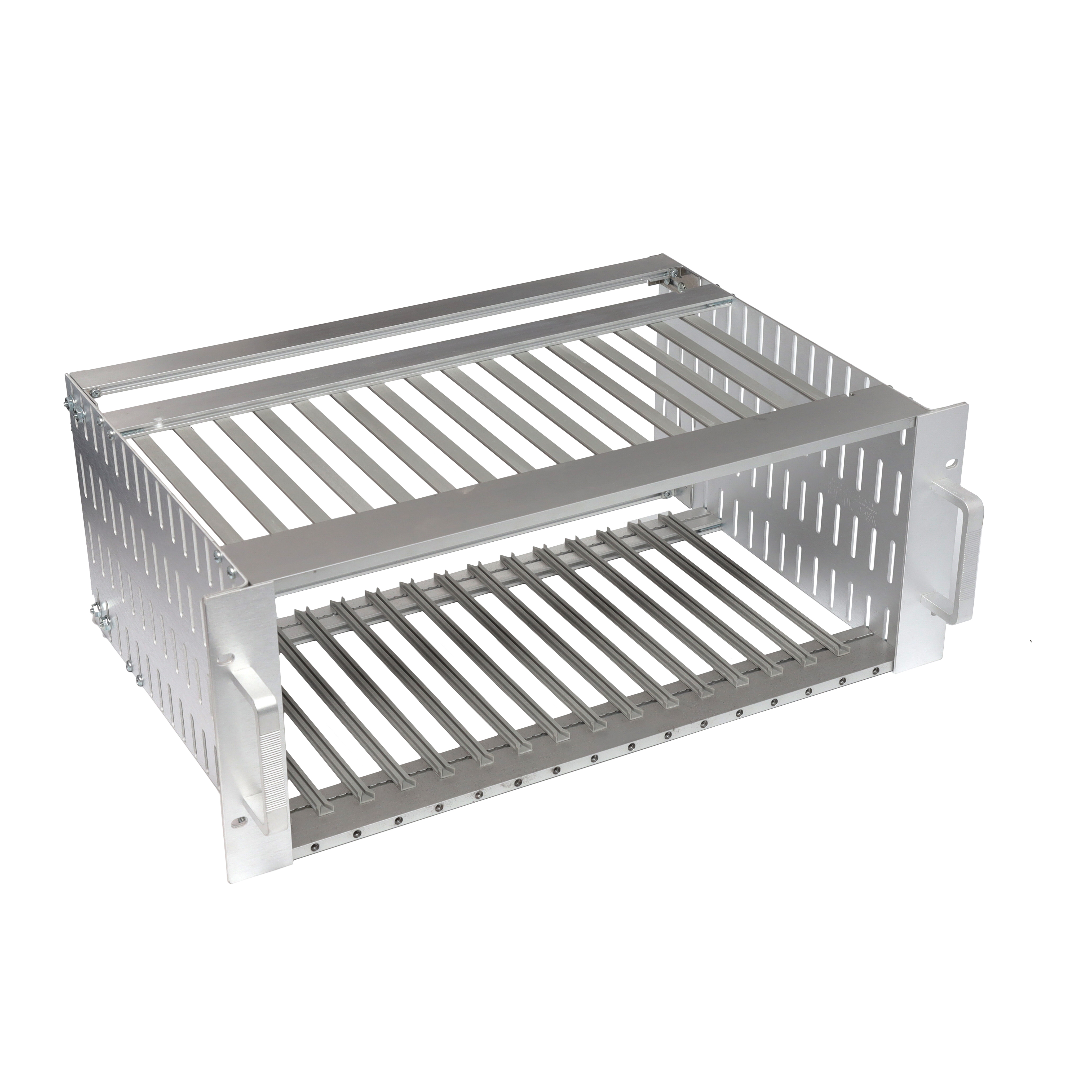

CCM15S Series
Aluminum Assembled Card Mount Subracks 4U = 7.000" (177.80mm)
