Connectors, Interconnects

PHG.0T.511.CLLC35

Active

LEMO

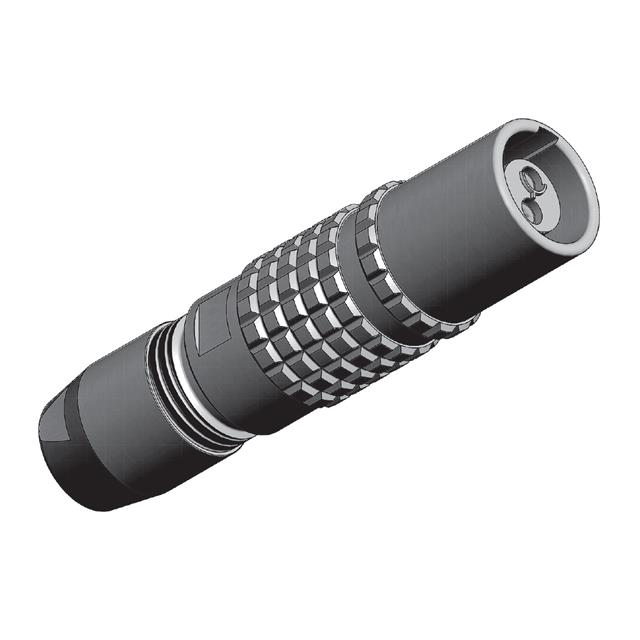

CABLE MOUNT RECEPTACLE 1-PAIR

Search across all available documentation for this part.

Connectors, Interconnects

Active

LEMO

CABLE MOUNT RECEPTACLE 1-PAIR

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shielding	Shell Size - Insert	Contact Finish - Mating	Orientation	Material Flammability Rating	Contact Material	Backshell Material, Plating	Shell Finish	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Connector Type	Features	Ingress Protection	Mounting Type	Termination	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]
LEMO PHG.0T.303.CYMC20Z	8 A	Push-Pull	0.079 in	0.063 in	2 mm	1.6 mm	Shielded	303	Gold	G	UL94 V-0	Bronze	Brass Chrome	Chrome	Metal	59 Áin	1.5 Ám	Silver	Polyetheretherketone (PEEK)	-55 °C	200 °C	Brass	Receptacle Female Sockets	Backshell	IP66/IP68	Free Hanging (In-Line)	Crimp
LEMO PHG.0T.511.CLLC35		Detent Lock Push-Pull					Shielded		Gold	G			Brass Chrome	Chrome	Metal			Silver	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Receptacle Female Sockets	Backshell	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)		11	3.5 mm	0.138 in	0.122 in	3.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 Position Circular Connector Receptacle, Female Sockets Solder Cup
