Capacitors
T498X107K016ATE075
ActiveKEMET
SURFACE MOUNT TANTALUM CAPACITOR, 100 ΜF, 16 V, 2917 [7343 METRIC], ± 10%, 0.075 OHM, X
Deep-Dive with AI
Search across all available documentation for this part.

Capacitors
T498X107K016ATE075
ActiveKEMET
SURFACE MOUNT TANTALUM CAPACITOR, 100 ΜF, 16 V, 2917 [7343 METRIC], ± 10%, 0.075 OHM, X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T498X107K016ATE075 |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 75 mOhms |
| Features | Automotive |
| Grade | Automotive |
| Height - Seated (Max) [Max] | 0.169 in |
| Height - Seated (Max) [Max] | 4.3 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 2917 (7343 Metric) |
| Qualification | AEC-Q200 |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [y] | 0.169 " |
| Size / Dimension [y] | 4.3 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 16 V |
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | ESR (Equivalent Series Resistance) | Ratings | Manufacturer Size Code | Tolerance | Type | Voltage - Rated | Features | Mounting Type | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Package / Case | Qualification | Grade | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.122 in | 3.1 mm | 2917 (7343 Metric) | 1 Ohm | AEC-Q200 | D | 20 % | Molded | 50 VDC | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 10 µF | ||||||
KEMET | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2312 (6032 Metric) | 1.1 Ohm | AEC-Q200 | 10 % | Molded | 4 V | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 47 µF | ||||||||
KEMET | 0.11 " | 3.5 mm | 0.138 in | 2.8 mm | 0.083 in | 2.1 mm | 1411 | 1.5 Ohm | AEC-Q200 | B | 20 % | Molded | 6.3 VDC | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 22 µF | 3528 Metric | ||||
KEMET | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2312 (6032 Metric) | 1.1 Ohm | AEC-Q200 | 20 % | Molded | 16 V | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 15 µF | ||||||||
KEMET | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2312 (6032 Metric) | 1.3 Ohm | AEC-Q200 | 20 % | Molded | 20 V | Automotive | Surface Mount | 2000 Hrs | -55 C | 150 °C | 6.8 µF | AEC-Q200 | Automotive | ||||||
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.122 in | 3.1 mm | 2917 (7343 Metric) | 230 mOhm | AEC-Q200 | D | 20 % | Molded | 16 V | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 33 ÁF | |||||
KEMET | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2312 (6032 Metric) | 450 mOhm | AEC-Q200 | 10 % | Molded | 20 V | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 6.8 µF | ||||||||
KEMET | 0.063 " | 3.2 mm | 0.126 " | 1.6 mm | 1206 (3216 Metric) | 2.9 Ohm | AEC-Q200 | A | 10 % | Molded | 10 V | Automotive | Surface Mount | 2000 Hrs | -55 C | 150 °C | 4.7 µF | AEC-Q200 | Automotive | 1.6 mm | 0.063 in | |||
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 75 mOhms | AEC-Q200 | X | 10 % | Molded | 16 V | Automotive | Surface Mount | 2000 Hrs | -55 C | 150 °C | 100 µF | AEC-Q200 | Automotive | 4.3 mm | 0.169 in | |||
KEMET | 0.126 in | 6 mm | 0.236 in | 3.2 mm | 2312 (6032 Metric) | 1.7 Ohm | AEC-Q200 | 10 % | Molded | 20 V | Automotive High Temperature | Surface Mount | 2000 Hrs | -55 C | 150 °C | 4.7 µF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.15 | |
| 10 | $ 3.57 | |||
| 50 | $ 3.24 | |||
| 100 | $ 2.67 | |||
| Digi-Reel® | 1 | $ 4.15 | ||
| 10 | $ 3.57 | |||
| 50 | $ 3.24 | |||
| 100 | $ 2.67 | |||
| N/A | 2718 | $ 4.74 | ||
| Tape & Reel (TR) | 500 | $ 2.33 | ||
| 1000 | $ 2.16 | |||
| 2500 | $ 2.12 | |||
| Mouser | N/A | 1 | $ 5.23 | |
| 10 | $ 3.84 | |||
| 50 | $ 3.19 | |||
| 100 | $ 2.98 | |||
| 500 | $ 2.57 | |||
| 1000 | $ 2.36 | |||
| 2500 | $ 2.22 | |||
| Newark | Each (Supplied on Full Reel) | 500 | $ 2.31 | |
| 1000 | $ 2.19 | |||
| 2000 | $ 2.18 | |||
| 3000 | $ 2.17 | |||
| 5000 | $ 2.16 | |||
Description
General part information

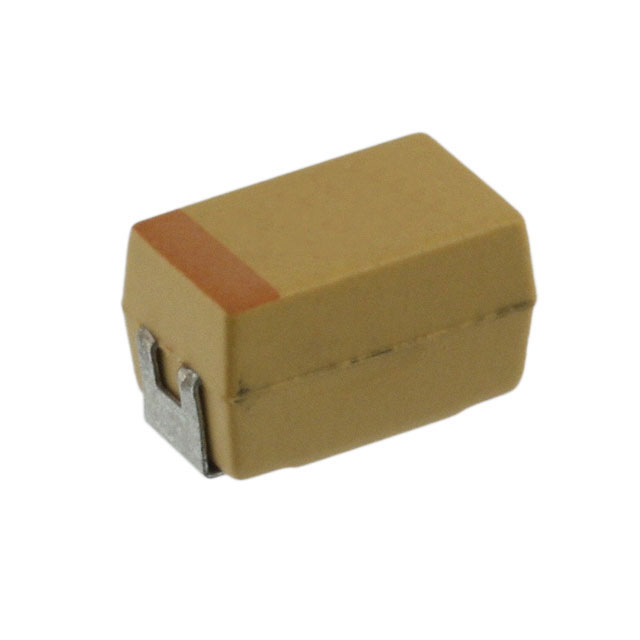

T498 AUTO Series
The T498 series SMD Tantalum Capacitor offers optimum performance characteristics in applications with operating temperatures up to 150°C. Advanced materials and testing allow this series to perform with a reliability level of 0.5%/1000hrs at rated voltage and temperature.
