Fans, Blowers, Thermal Management

AER35-35-21CB/A01

Active

CTS Thermal Management Products

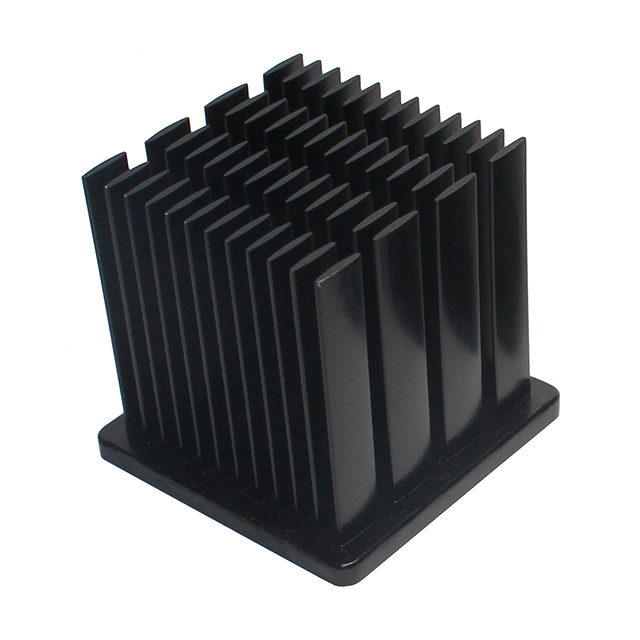

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER35-35-21CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	0.811 in
Fin Height	20.6 mm
Length	1.362 in
Length	34.6 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	LGA, CPU, ASIC, BGA
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	2.62 °C/W
Thermal Resistance @ Natural	9.6 °C/W
Type	Top Mount
Width [x]	1.362 in
Width [x]	34.6 mm

AER35 Series

Part	Shelf Life	Thermal Resistance @ Natural	Material	Shape	Attachment Method	Thermal Resistance @ Forced Air Flow	Material Finish	Package Cooled	Type	Length	Length	Fin Height	Fin Height	Width [x]	Width [x]	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products AER35-35-33CB/A01	24 Months	8 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	1.82 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm	1.283 in	32.6 mm	1.362 in	34.6 mm
CTS Thermal Management Products AER35-35-23CB/A01	24 Months	9.3 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	2.42 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm			1.362 in	34.6 mm	22.61 mm	0.89 in
CTS Thermal Management Products AER35-35-21CB/A01	24 Months	9.6 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	2.62 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm	0.811 in	20.6 mm	1.362 in	34.6 mm
CTS Thermal Management Products AER35-35-28CB/A01	24 Months	8.7 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	2.02 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm			1.362 in	34.6 mm			27.6 mm	1.087 in
CTS Thermal Management Products AER35-35-12CB/A01	24 Months	11 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	3.32 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm			1.362 in	34.6 mm					0.457 in	11.6 mm
CTS Thermal Management Products AER35-35-18CB/A01	24 Months	10 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	2.82 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm	0.693 in	17.6 mm	1.362 in	34.6 mm
CTS Thermal Management Products AER35-35-15CB/A01	24 Months	10.5 °C/W	Aluminum Alloy	Fins Square	Thermal Tape Adhesive (Included)	3.02 °C/W	Black Anodized	ASIC BGA CPU LGA	Top Mount	1.362 in	34.6 mm		14.6 mm	1.362 in	34.6 mm					0.575 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 6.11
	Tray	300	$ 6.30

Description

General part information

AER35 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet
