Connectors, Interconnects

09340102701

Active

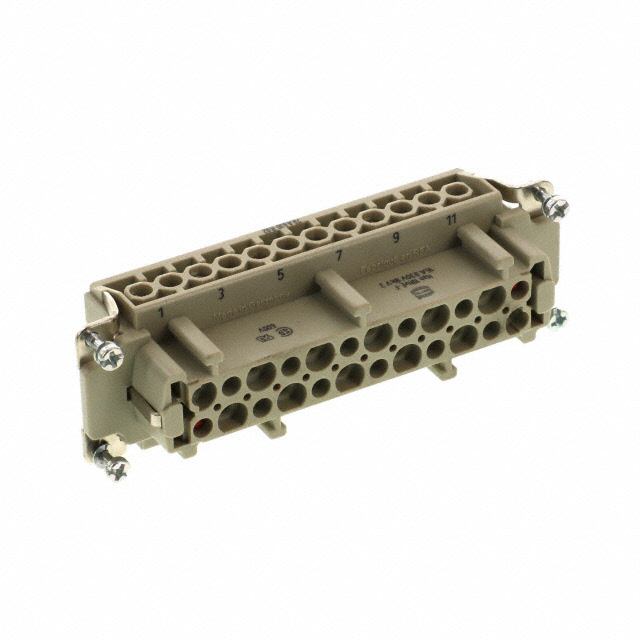

HAN HVE 10 POS. F INSERT SCREW ROHS COMPLIANT: NA

Search across all available documentation for this part.

Connectors, Interconnects

Active

HAN HVE 10 POS. F INSERT SCREW ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09340102701

Color	Gray
Connector Type	Insert
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	2
Number of Positions [custom]	10
Number of Positions [custom]	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Size	24 B
Termination Style	Screw
Voltage Rating	830 V

Part	Color	Housing Material	Material Flammability Rating	Termination Style	Gender	Size	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Contact Finish	Contact Material
HARTING 09340102602	Gray	Polycarbonate (PC)	UL94 V-0	Crimp	Male	24 B	830 V	125 °C	-40 C	Insert without Contacts	Han®	2	10	Ground	16 A
HARTING 09340102701	Gray	Polycarbonate (PC)	UL94 V-0	Screw	Female	24 B	830 V	125 °C	-40 C	Insert		2	10	Ground	16 A	Silver	Copper Alloy
HARTING 09340102702	Gray	Polycarbonate (PC)	UL94 V-0	Crimp	Female	24 B	830 V	125 °C	-40 C	Insert without Contacts	Han®	2	10	Ground	16 A
HARTING 09340102616	Gray	Polycarbonate (PC)	UL94 V-0	Push In	Male	24 B	830 V	125 °C	-40 C	Insert		2	10	Ground	16 A	Silver	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 10+2+Ground Position Screw
