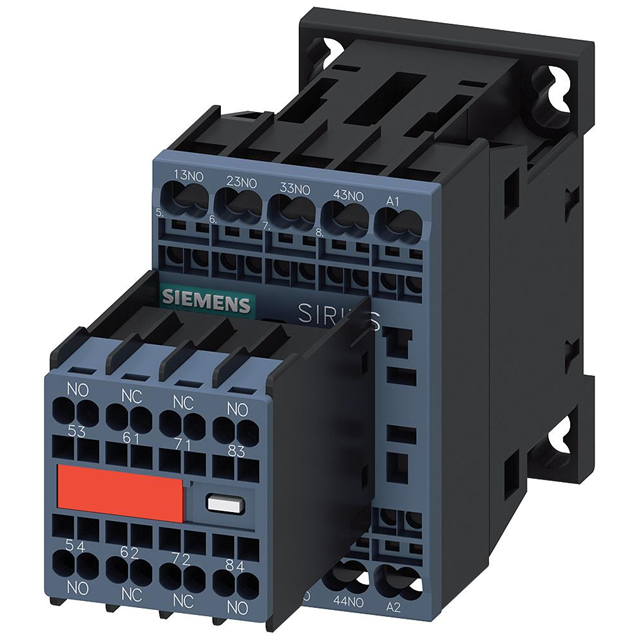

MFG_3RH22622BB40
Relays

3RH22622BD80

Active
Siemens

CONTACTORS - ELECTROMECHANICAL CONT RELAY,6NO+2NC, DC 115V,SZ S0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS 2 Control Relay Specification and CatalogDatasheet
MFG_3RH22622BB40
Relays

3RH22622BD80

Active
Siemens

CONTACTORS - ELECTROMECHANICAL CONT RELAY,6NO+2NC, DC 115V,SZ S0

Deep-Dive with AI

DocumentsSIRIUS 2 Control Relay Specification and CatalogDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification3RH22622BD80
Coil Power4 W
Coil Voltage115 VDC
Contact Form8PST-6NO/2NC (6 Form A, 2 Form B)
Contact Rating (Current)10 A
FeaturesAuxiliary Contacts
Mounting TypeChassis Mount, DIN Rail
Must Operate Voltage92 VDC
Operate Time100 ms
Operating Temperature [Max]60 °C
Operating Temperature [Min]-25 °C
Release Time13 ms
Switching Voltage [Max]690 VAC
Termination StyleSpring Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 166.79
N/A 0$ 218.88
MouserN/A 1$ 168.19
10$ 158.49
25$ 148.80
50$ 142.31

Description

General part information

3RH22622 Series

CONTACTORS - ELECTROMECHANICAL CONT RELAY,6NO+2NC, DC 115V,SZ S0
